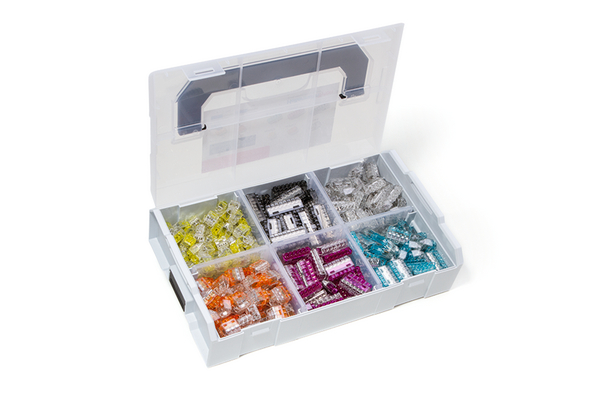

Push-in wire connector, 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires, transparent, 350pcs.
Art.-No. 148-90046
| HCPM Variobox 350-PC-CL
|
Copied
- 40 % smaller – Space saving design
- Low insertion force – Easy to use, saves time on installation
- Easy access to voltage test entry and innovative port shape design
- Correct installation can be visually checked through transparent housing
- Different colour codes for easy identification of size
- Allows different conductor diameters in each entry
- Safe application, installation and maintenance
- Practical Variobox with 350 pcs. of selected HCPM wire connectors available (148-90046)
Request your individual offer now
Request quote
More products in this product group:
100 x HCPM-2
148-90036
60 x HCPM-4
148-90038
20 x HCPM-8
148-90041
80 x HCPM-3
148-90037
50 x HCPM-5
148-90039
40 x HCPM-6
148-90040| Application | HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires. |
| Colour | Transparent (CL) |
| Local order number | HCPM Variobox 350 |
| Material | Polycarbonate (PC) |
| Max Current | 24A |
| Max Voltage | 600V |
| PART DESCRIPTION | HCPM Variobox 350-PC-CL |
| Package Content | 350pcs. |
| Package Content packed in | Box |
| Product Family | HelaCon Plus Mini |
| Product Group | Connectors - For Solid and Stranded Wires |
| Short Description | Push-in Wire Connector Variobox 350 |
| Suitable for flexible core (Yes/No) | No |
| Suitable for multi wire core (Yes/No) | Yes |
| Suitable for solid core (Yes/No) | Yes |
| Type | HCPM Variobox 350 |
| Weight/Unit | 0.718969kg |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | 2006/65/EC, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014) |
| UL OCD link | Link |
| UL-File Number | E316080 |
|
|
|
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026556994 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.26m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.0026195m³ |
| Packaging 1 - Weight (kg) | 1.025169kg |
| Packaging 1 - Width (m) | 0.155m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 4 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 4.4448kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 192 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 234.312kg |
| Packaging 4 - Width (m) | 0.8m |
