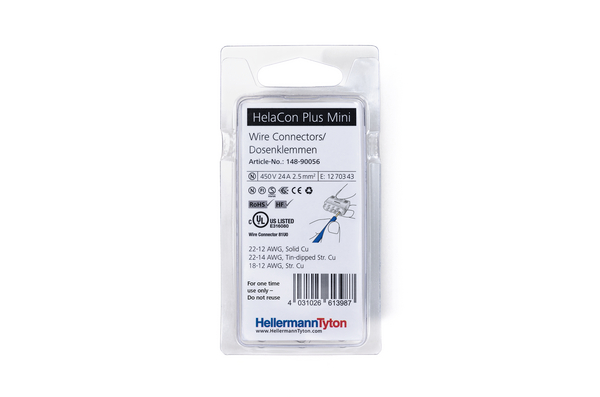

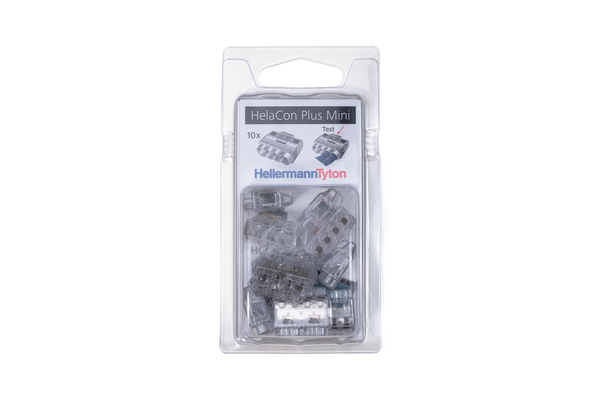

Push-in wire connector, 4 conductors, 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires, transparent, 10pcs.
Art.-No. 148-90056 | HCPM-4-Blister-PC-CL Details

  • 40 % smaller – Space saving design
  • Low insertion force – Easy to use, saves time on installation
  • Easy access to voltage test entry and innovative port shape design
  • Correct installation can be visually checked through transparent housing
  • Different colour codes for easy identification of size
  • Allows different conductor diameters in each entry
  • Safe application, installation and maintenance
Show more

Request your individual offer now

Application HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.
Colour Transparent (CL)
Local order number HCPM-4-PC-BL
Material Polycarbonate (PC)
Number of Conductors 4
PART DESCRIPTION HCPM-4-Blister-PC-CL
Pack Cont. 10pcs.
Package Content packed in Box
Product Family HelaCon Plus Mini
Product Group Connectors - For Solid and Stranded Wires
Short Description HelaCon Plus Mini wire connector for solid and stranded wires.
Suitable for flexible core (Yes/No) No
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Type HCPM-4-Blister
Height (H) 7.7mm
Length (L) 16.5mm
Max Current 24A
Max Voltage 450V
Stripping Length 11mm
Weight/Unit 0.0019kg
Width (W) 19.4mm
Wire Range (VDE) 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires
Wire Range (cULus) 12-22 AWG Sol. Cu / 14-22 AWG Tin-dipped Str. Cu
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications 2006/65/EC, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014)
UL OCD link Link
UL-File Number E316080
Country of Origin CN
Customs Number 85369010
GTIN-13 / EAN 4031026613987
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 10
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00025
Packaging 1 - Weight (kg) 0.019kg
Packaging 1 - Width (m) 0.055m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.37m
Packaging 3 - Qty 1800
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.029
Packaging 3 - Weight (kg) 3.92kg
Packaging 3 - Width (m) 0.245m
Packaging 4 - Height (m) 1.104m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.06
Packaging 4 - Weight (kg) 126.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000446
ETIM 8.0 Key EC000446
ETIM 9.0 Key EC000446
