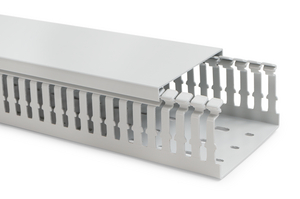

Wiring duct 25x25 mm, halogen-free, 2000 mm, grey
Art.-No. 183-22525 | HTWD-HF-25X25-PC/ABS-GY Details

  • Excellent fire-safety characteristics according to UL94 und EN 45545-2
  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Duct covers hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of duct
  • Base perforation according to DIN EN 50085
Show more
Package size

Request your individual offer now

Application HelaDuct HTWD-HF wiring ducts are used to route and protect wires in control panels and switching systems where there are high demands on personal or material safety in case of fire, such as in public transport, tunnels, data-processing centers or public buildings.
Colour Grey (GY)
Fixation Method Screw Mounting
Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
PART DESCRIPTION HTWD-HF-25X25-PC/ABS-GY
Pack Cont. 50.0m
Package Content packed in Box
Product Family HelaDuct HTWD-HF (metric sizes)
Product Group Halogen-free wiring ducts
Short Description Wiring duct 25x25 mm, halogen-free, 2000 mm, grey
Type HTWD-HF-25X25
Type of side wall Slotted
Height (H) 25.0mm
Length (L) 2.0m
Weight/Unit 0.179kg
Width (W) 25.0mm
Width (W2) 6.0mm
Width (W3) 6.5mm
CE Certification Yes
CSA Certified Yes
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +90 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, csa-C22.2 no. 18.5, csa-C22.2 no. 62275, EN 45545-2
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E357929
UV-Stabilised No
Country of Origin DE
Customs Number 39259020
GTIN-13 / EAN 4031026564883
Packaging 3 - Height (m) 0.073m
Packaging 3 - Length (m) 2.01m
Packaging 3 - Qty 50
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0371
Packaging 3 - Weight (kg) 10.582kg
Packaging 3 - Width (m) 0.253m
Packaging 4 - Height (m) 1.239m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2250
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.189
Packaging 4 - Weight (kg) 497.19kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000012
ETIM 8.0 Key EC000012
ETIM 9.0 Key EC000012
UNSPSC Key 39131712
