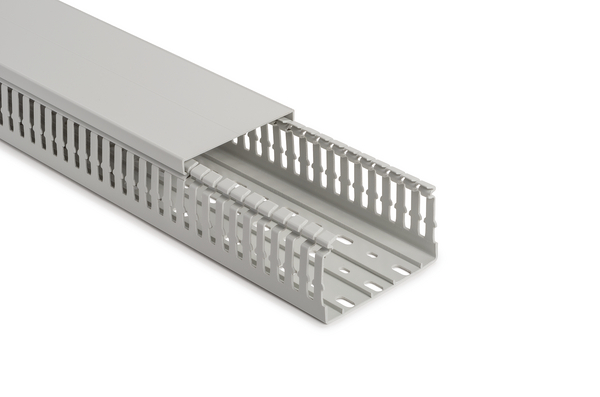

Halogen-free wiring ducts : HTWD-HF-40X80

Wiring duct 40x80 mm, halogen-free, 2000 mm, grey, Article number: 183-24080

Features

  • Excellent fire-safety characteristics according to UL94 und EN 45545-2
  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Duct covers hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of duct
  • Base perforation according to DIN EN 50085

Certifications & Approvals

Application

HelaDuct HTWD-HF wiring ducts are used to route and protect wires in control panels and switching systems where there are high demands on personal or material safety in case of fire, such as in public transport, tunnels, data-processing centers or public buildings.

HelaDuct HTWD-HF (metric sizes) is suitable for following markets and industries

Colour Grey (GY)
Fixation Method Screw Mounting
Pack Cont. 20m
Package Quantity per Box
PART DESCRIPTION HTWD-HF-40X80-PC/ABS-GY
Product Family HelaDuct HTWD-HF (metric sizes)
Product Group Halogen-free wiring ducts
Short Description Wiring duct 40x80 mm, halogen-free, 2000 mm, grey
Type of side wall Slotted
Height (H) 80mm
Length (L) 2m
Width (W) 40mm
Width (W2) 6mm
Width (W3) 6.5mm
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
Operating Temperature - °C -25 °C to +90 °C
Self extinguishing (Yes/No) Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, DIN EN 45545-2 (02/2016)
UL OCD link Link
UL-File Number E357929
EAN / GTIN 4031026565026
Packaging 3 - Height (m) 0.118m
Packaging 3 - Length (m) 2.01m
Packaging 3 - Qty 20
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0593
Packaging 3 - Weight (kg) 11.36kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Height (m) 0.1443m
Packaging 4 - Length (m) 2.4m
Packaging 4 - Qty 660
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.277
Packaging 4 - Weight (kg) 414.88kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000012
ETIM 7.0 Key EC000012
