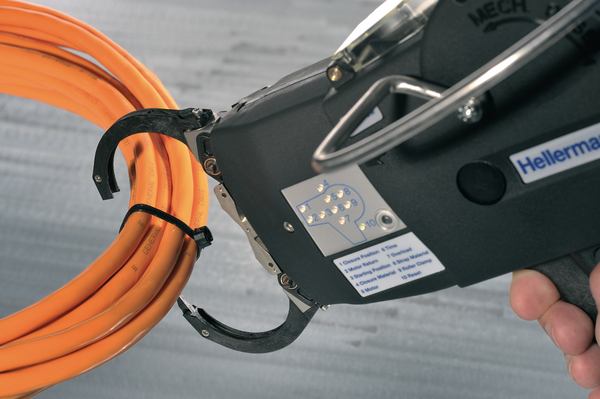

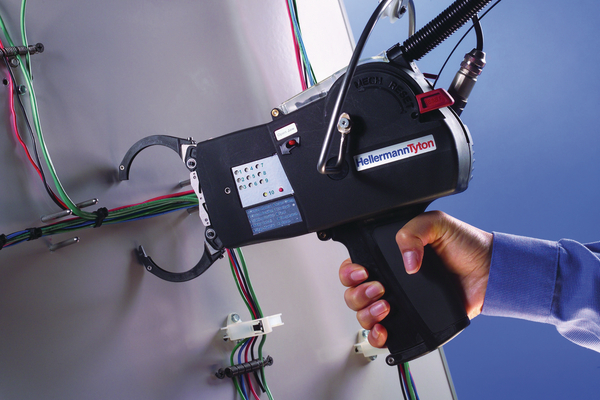

Waste-free bundling up to Ø 80 mm : ATS3080

Automatic cable tying system ATS3080, Article number: 102-00000


  • Electrically operated cable tying system (Power pack 3080 necessary)

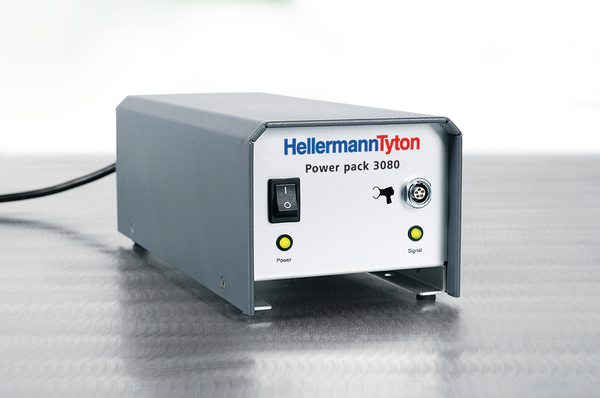

  • Power supply through Power pack 3080 - Input: 240/150 V a.c., 50/60 Hz; Output: 48 V d.c., max. 150 W
  • High quality, waste-free bundling up to Ø 80 mm with flush cut off

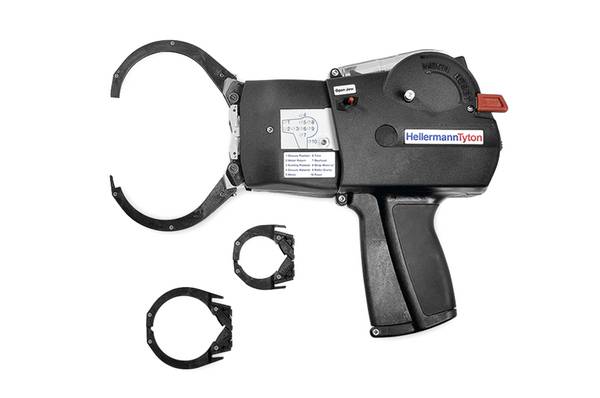

  • Jaws with diameters of 30, 50 and 80 mm - included in delivery
  • Cycle time 1.1-2.4 seconds depending on bundle diameter
  • Bundle diameter mechanically detected
  • Integration into Bench mount kit 3080 or Overhead suspension 3080 possible

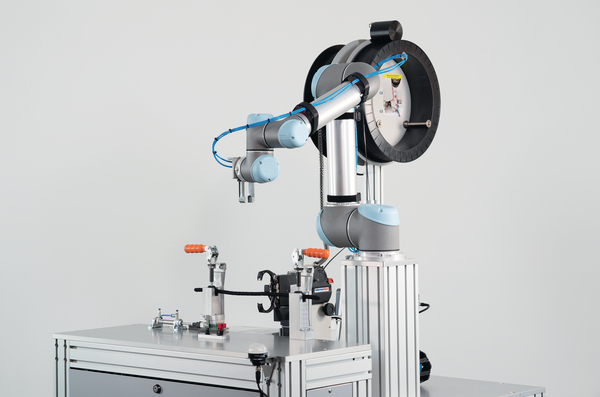

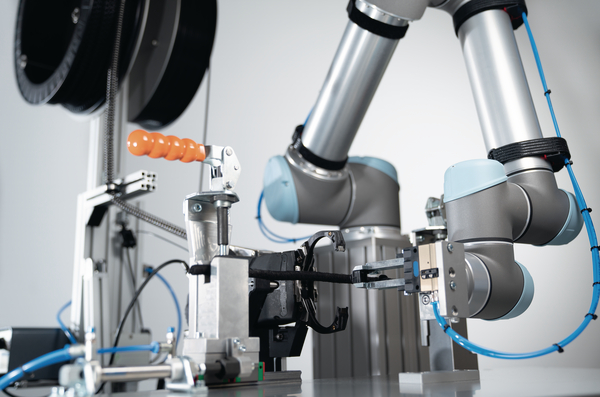

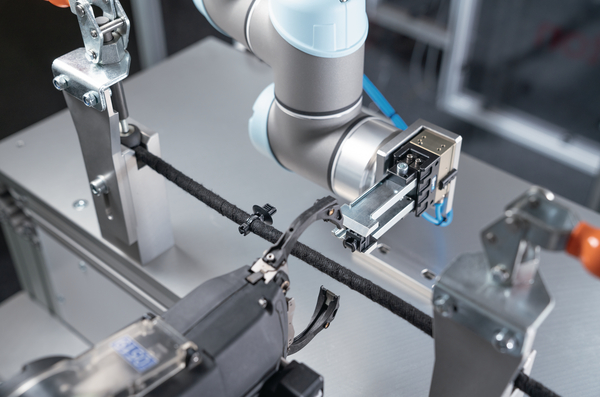

  • Integration into fully automated production lines possible
  • Foot part bundling with custom jaw design Ø 50 mm

Certifications & Approvals


It is now possible to fit fixings (sometimes known as foot parts) in conjunction with automatic cable tying. This is best suited to applications where either high volume manufacture or flexible production methods are needed. See the ATS3080 system for this fully automatic solution.

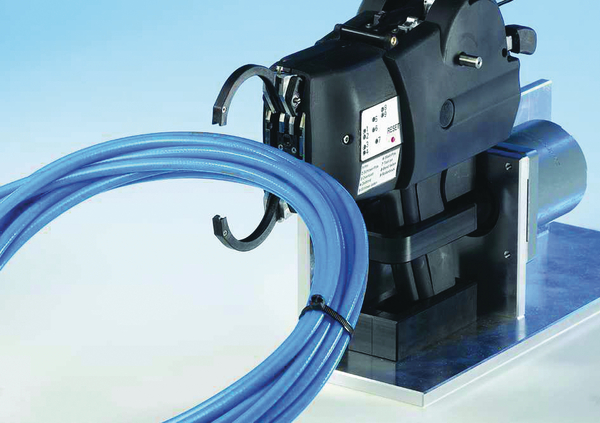

Bench mount kit Tool and tie reel stand including footpedal
Cable Ties 102-66109, 102-66110, 102-66209, 102-66210
Colour Black (BK)
Description Autotool System 3080

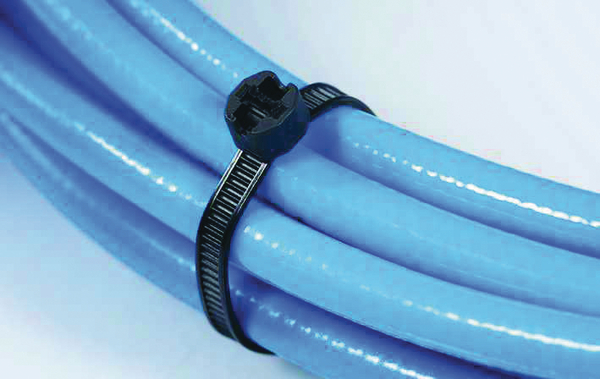

Features and Benefits The Autotool System 3080 is innovative for its strap and closures. The two-piece consumable consists of strap and closures, is waste free and guarantees optimised material utilisation. No time loss when cleaning or opening waste boxes. This allows bindings with flush cut off and together with the plain inner surface of the strap this prevents damage to wire insulation. The material is available on reels of 500m strap or 5000 pieces closures. Another advantage of the Autotool System 3080 are the three different jaw diameters which can be changed very quickly. Choose the jaw diameter according to your bundling diameter since the cycle time depends on the jaw diameter. By choosing a smaller diameter faster bundling can be achieved. The following jaw diameters are available: 30mm, 50mm and 80mm.
For Cable Tie Width 4.5 - 4.5mm
Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
Operation electrical

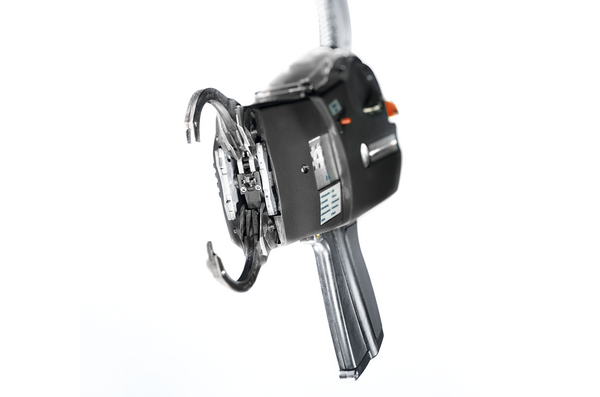

Overhead Suspender Overhead suspension 3080 and tie reel stand including balancer
Pack Cont. 1pc.
Package Quantity per pcs.
Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
Product Family Autotool System 3080
Product Group Waste-free bundling up to Ø 80 mm
Short Description The ATS3080 is an electrical bundling system from HellermannTyton. In about one second you get absolutely waste free bindings. The outside serrated strap and the closures are each supplied on "continuous reels". The ATS3080 is an outstanding innovation in bundling systems!
Short Description Automatic cable tying system ATS3080
Tension Setting Tools Adjustable
Tool property Automatic cut off
Tool suitable cable tie material Plastic
Type ATS3080.9A
Bundle ∅ max. 80.0mm
Bundle ∅ min. 0.0mm
Cycle Time 1.1-2.4 sec. depending on bundle diameter
Power Supply Electrically operated
Tension Force Adjustable
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
EAN / GTIN 4031026215822
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.147m
Packaging 1 - Length (m) 0.473m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.02656
Packaging 1 - Weight (kg) 4.2kg
Packaging 1 - Width (m) 0.382m
Packaging 3 - Height (m) 0.168m
Packaging 3 - Length (m) 0.481m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0396
Packaging 3 - Weight (kg) 4.56kg
Packaging 3 - Width (m) 0.49m
Packaging 4 - Height (m) 1.152m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.106
Packaging 4 - Weight (kg) 66.6kg
Packaging 4 - Width (m) 0.8m
Weight 4.2kg
ETIM 6.0 EC000453
ETIM 7.0 Key EC000453
