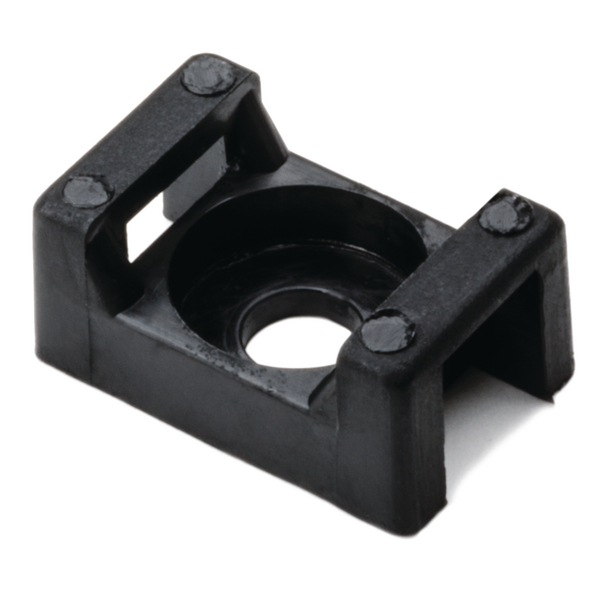

Cable tie mount for screw fixation, Wmax=5.0mm, ∅3.8 mm, #6 (M3) Screw, black, 1000pcs.
Art.-No. 151-30301 | CTM0-PA66-BK Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials
Package size

Request your individual offer now

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 7.9 mm wide.
Colour Black (BK)
Fixation Method Screw Mount
For Ties T18 - T50
Local order number CTM0.NB7P
Material Polyamide 6.6 (PA66)
Mounting Screw Type #6 (M3) Screw
PART DESCRIPTION CTM0-PA66-BK
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Family Cable tie mounts with curved design
Product Group Screw fixing mounts
Type CTM0
Height (H) 6.90mm

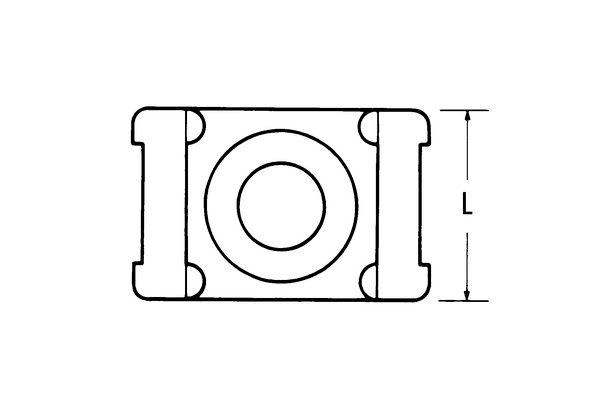

Length (L) 14.7mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Weight/Unit 0.000416kg
Width (W) 9.4mm
for Hole ∅ (FH) 3.8 mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026312521
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.416001kg
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 15000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 6.860015kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 158.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
