Screw Fixing Mounts : CTM1

Cable Tie Mount with curved design 14.7x9.4 mm black, Article number: 151-30404

Features

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials

Certifications & Approvals

Application

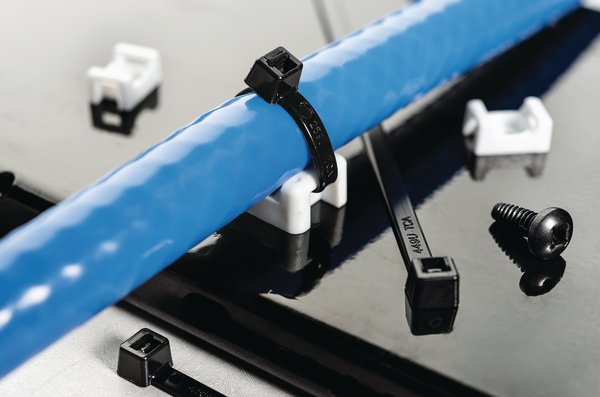

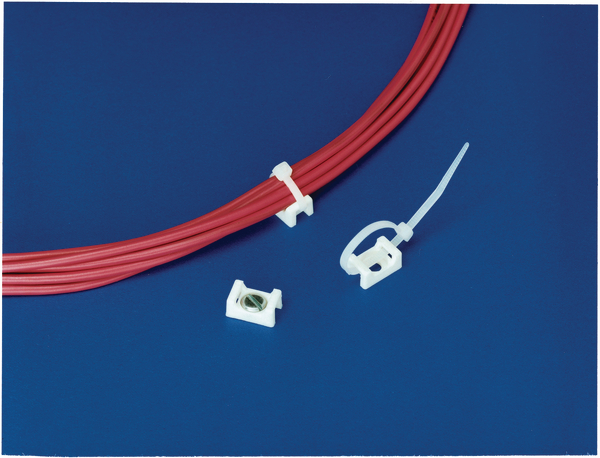

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.

Colour White (WH)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type #8 (M4) Screw
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION CTM1-PA66-WH
Product Family Cable Tie Mounts with curved design
Product Group Screw Fixing Mounts
Short Description Cable Tie Mount with curved design 14.7x9.4 mm black
Type CTM1.NW3P
for Hole ∅ (FH) 4.8 mm

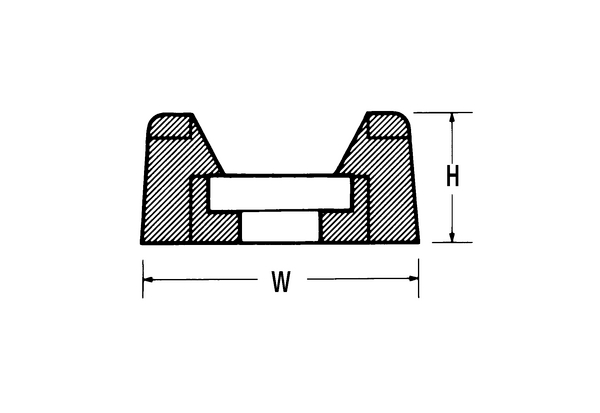

Height (H) 6.90mm
Length (L) 14.7mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"

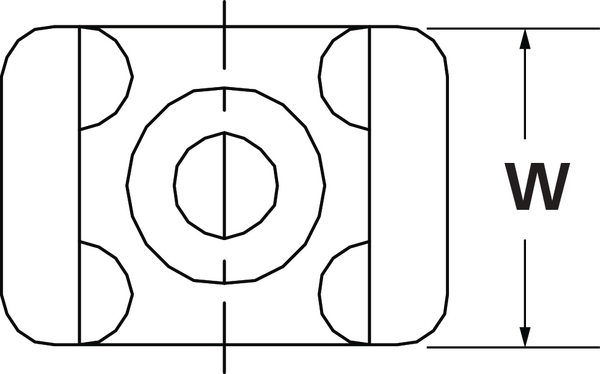

Width (W) 9.4mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026414348
Packaging 1 - Height (m) 0.175m
Packaging 1 - Length (m) 0.561m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01787
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.182m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 3.0kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 75000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 66.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.05kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
