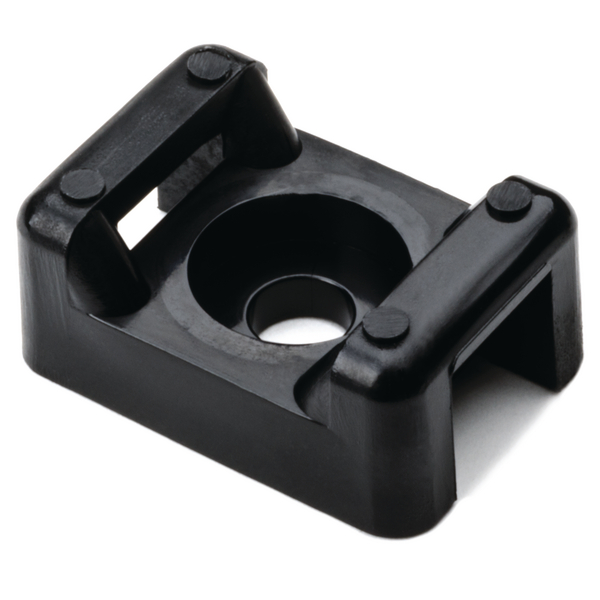

Cable tie mount for screw fixation, Wmax=7.9mm, ∅4.6 mm, #8 (M4) Screw, black, 100pcs.
Art.-No. 151-30500 | CTM2-PA66-BK Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials

Request your individual offer now

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
Colour Black (BK)
Fixation Method Screw Mount
For Ties T18 - T120
Local order number CTM2.NB3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type #8 (M4) Screw
PART DESCRIPTION CTM2-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family Cable tie mounts with curved design
Product Group Screw fixing mounts
Short Description Cable Tie Mount with curved design 21.8x15.5 mm black
Type CTM2
Height (H) 9.40mm
Length (L) 21.8mm
Strap Width max. (G) 7.9mm
Strap Width max. (G) (imperial) 0.31"
Weight/Unit 0.0005kg
Width (W) 15.5mm
for Hole ∅ (FH) 4.6 mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026312569
Packaging 1 - Height (m) 0.0775m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0019
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.1225m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 3.12005kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 83.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
