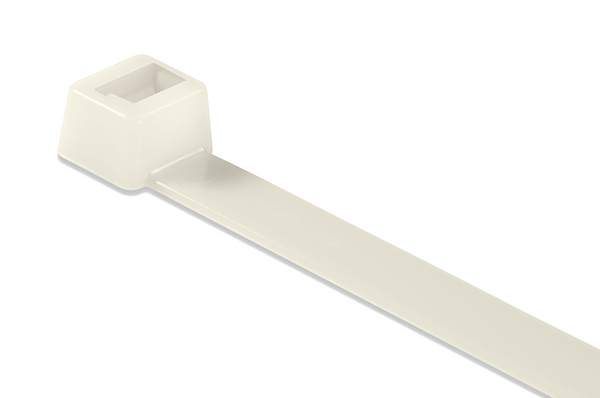

Cable tie inside serrated, 270x4.6mm, Ø5.0-73.0mm, natural, 100pcs.
Art.-No. 111-60119 | LK2A-PA66-NA Details

  • Inside serrated cable ties for a strong hold around bundles

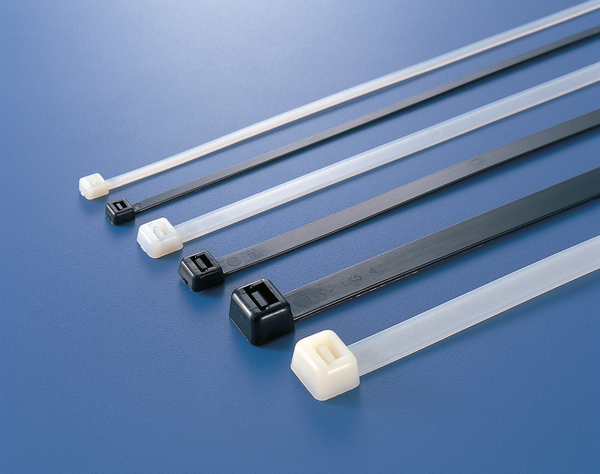

  • Various materials and sizes are available
  • High tensile strength with very low insertion force
  • Easy application either manually or with an application tool

Request your individual offer now

e-Learning

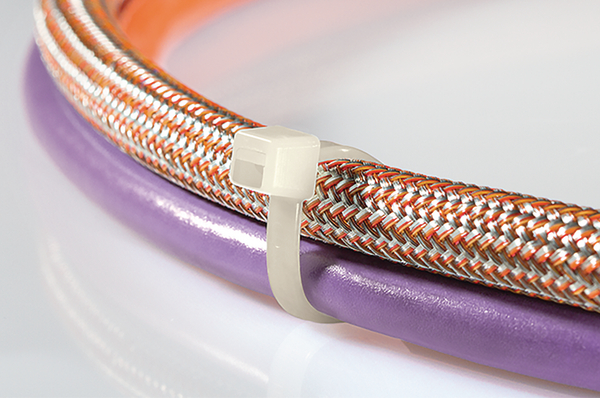

Application For bundling and securing cables, pipes and hoses. The LK-Series is similar to T-Series but offers in-between sizes to fit individual customer needs.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Identification Plate Position none
Local order number LK2A.NN3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION LK2A-PA66-NA
Product Family LK-Series
Product Group Cable ties in-between size to T-Series
Releasable Closure (Yes/No) No
Short Description Cable Tie PA66 270x4.6 mm natural
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 73.0mm
Bundle ∅ 5.0-73.0mm
Bundle ∅ min. 5.0mm

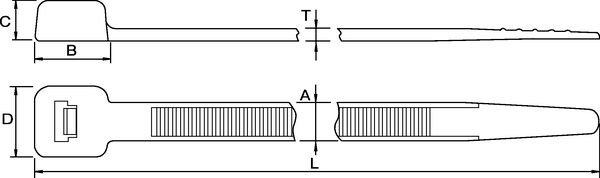

Length (L) 270mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Weight/Unit 0.00193kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275, IEC 60092 series
UL OCD link Link
UL Type 11
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660018374
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.311m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00173
Packaging 1 - Weight (kg) 0.193001kg
Packaging 1 - Width (m) 0.111m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 12.38206kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 268.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
