Coloured MCT50L ties are temporarily not available.

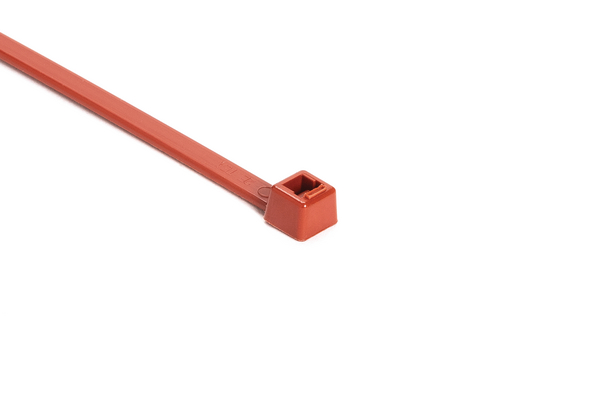

Cable tie inside serrated detectable, 380.0x4.7mm, Ø1.5-110.0mm, red, 100pcs.
Art.-No. 111-01167 | MCT50L-PA66MP-RD Details

  • Total metal dispersion throughout the tie available in a wide range of sizes
  • Usable as part of HACCP process
  • Greatly reduces risk of contamination
  • Magnetic and X-Ray detectable versions available

Request your individual offer now

Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Red (RD)
Fixation Method Cable Tie
Identification Plate Position none
Internet Customer Notice Coloured MCT50L ties are temporarily not available.
Key product features detectable
Local order number MCT50L.NR3P
Material Polyamide 6.6, with metal particles (PA66MP)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION MCT50L-PA66MP-RD
Product Family MCT-Series, PA66MP
Product Group Cable ties for food industry, detectable
Releasable Closure (Yes/No) No
Short Description Metal Content Tie 380x4.7 PA66MP red
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 110.0mm
Bundle ∅ 1.5-110.0mm
Bundle ∅ min. 1.5mm
Length (L) 380.0mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Weight/Unit 0.00282kg
Width (W) 4.7mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660337147
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.424m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00231
Packaging 1 - Weight (kg) 0.307kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 13.082kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 282.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
