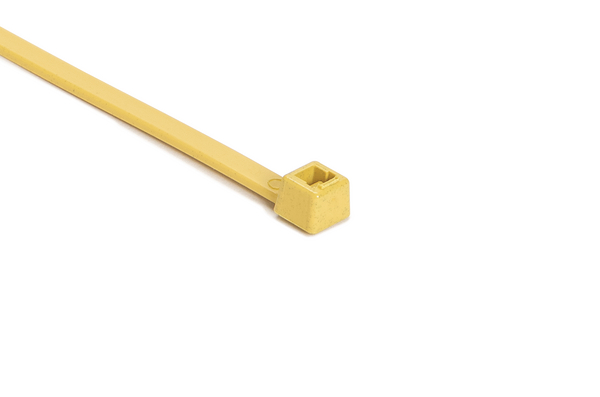

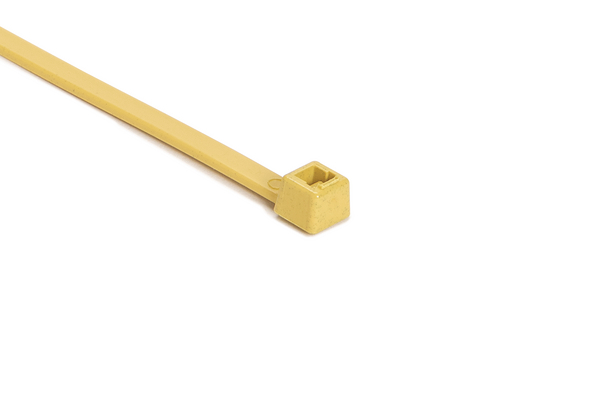

Cable tie inside serrated detectable, 380.0x4.7mm, ∅1.5-110.0mm, yellow, 100pcs.
Art.-No. 111-01168 | MCT50L-PA66MP-YE Details

  • Total metal dispersion throughout the tie available in a wide range of sizes
  • Usable as part of HACCP process
  • Greatly reduces risk of contamination
  • Magnetic and X-Ray detectable versions available

Request your individual offer now

Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Yellow (YE)
Fixation Method 1 piece
Identification Plate Position none
Key product features detectable
Local order number MCT50L.NY3P
Material Polyamide 6.6, with metal particles (PA66MP)
PART DESCRIPTION MCT50L-PA66MP-YE
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family MCT-Series, PA66MP
Product Group Cable ties for food industry, detectable
Releasable Closure (Yes/No) No
Short Description Metal Content Tie 380x4.7 PA66MP yellow
Tie Closure plastic pawl
Type MCT50L
Variant Inside Serrated
Bundle Diameter max (metric) 110.0mm
Bundle ∅ 1.5-110.0mm
Bundle ∅ min. 1.5mm
Length (L) 380.0mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Weight/Unit 0.00282kg
Width (W) 4.7mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660337154
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.424m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00231
Packaging 1 - Weight (kg) 0.282001kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 12.08204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 262.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
