29/05/2024

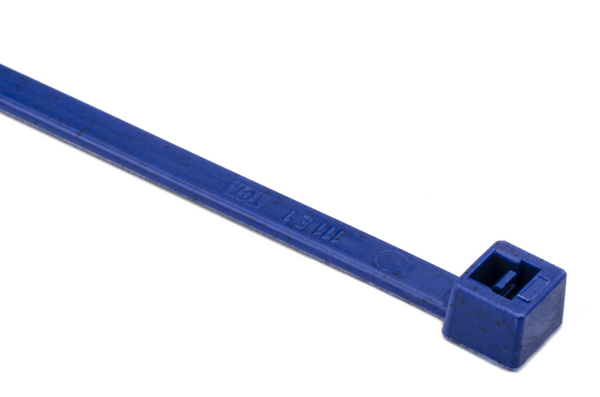

Cable tie inside serrated detectable, 150.0x3.5mm, Ø1.5-35.0mm, blue, 100pcs.
Art.-No. 111-00829 | MCT30R-PA66MP-BU Details

  • Total metal dispersion throughout the tie
  • Can support quality assurance in the production of food stuffs, for example HACCP
  • Blue colour for easy visual detection
  • Greatly reduces risk of contamination
  • Magnetic detectable (detection level depending on specific application and equipment)
Show more

Request your individual offer now

Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Blue (BU)
Fixation Method Cable Tie
Identification Plate Position none
Key product features detectable
Local order number MCT30R.NL3P
Material Polyamide 6.6, with metal particles (PA66MP)
PART DESCRIPTION MCT30R-PA66MP-BU
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family MCT-Series, PA66MP
Product Group Cable ties for food industry, detectable
Releasable Closure (Yes/No) No
Short Description Metal Content Tie 150x3.5 mm, PA66MP, blue
Tie Closure plastic pawl
Type MCT30R
Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Height (metric) 4.3mm
Cable Tie Head Length (metric) 5.7mm
Cable Tie Head Width (metric) 6mm
Length (L) 150.0mm
Min.Tensile Strength 135N
Strap Width max. (G) (imperial) 0.24"
Thickness (T) 1.2mm
Weight/Unit 0.0007kg
Width (W) 3.5mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660330681
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00093
Packaging 1 - Weight (kg) 0.080001kg
Packaging 1 - Width (m) 0.149m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 8.8021kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 197.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
