Cable marker, continuous, thermal transfer print, 20.0x20.0mm, blue, reel=190pcs.
Art.-No. 556-26500 | TTAGMC11BEX65S-PO/MET-BU Details

  • Metal detectable
  • For marking larger cables in food and pharma industries
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Show more

Request your individual offer now

e-Learning

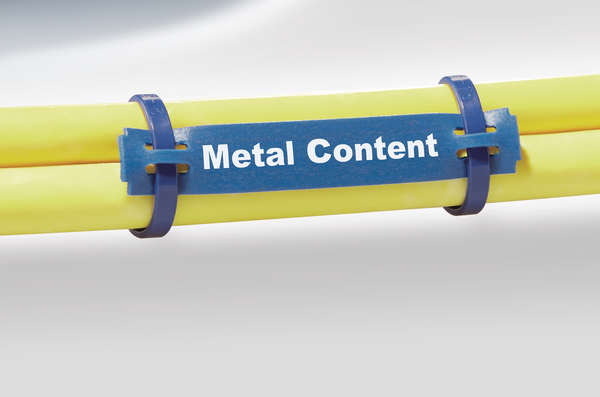

Application The TIPTAG MC cable markers have been especially designed for applications where materials need to be metal detectable. Small metal particles have been included into the entire length of the marker making it ideal for marking larger cables, wires and bundles in the food and pharmaceutical industries. TIPTAG MCs come in a special perforated format that includes holes for fastening with cables ties (MCT). Print from the reel with HellermannTyton's premium range of thermal transfer printers.

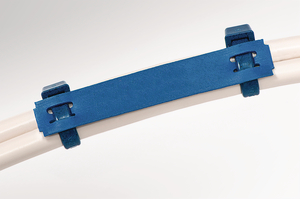

Application Method The TTAG MC is applied using 2 cable ties (MCT Ties)
Colour Blue (BU)
Fixation Method Others
Local order number TTAGMC11BEX65S
Material Polyolefin (PO), Metal (MET)
PART DESCRIPTION TTAGMC11BEX65S-PO/MET-BU
Pack Cont. 190pcs.
Package Content packed in Reel
Product Family TTAG MC - Metal Content TipTags
Product Group Identification tags for cable bundles, thermal transfer
Short Description Metal content cable marker 11x65 mm blue
Type TTAGMC11BEX65S
Variant Roller form
With label space Yes
H printable 6.35mm
Length (L) 20.0mm
Print Method thermal transfer print
Strap Width max. (G) 4.6mm
Weight/Unit 0.001047kg
Width (W) 20.0mm
Width printable 38.1mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Recommended Ribbon Type TTDTHOUT, TTRW
Reel Variant continuous
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39209990
GTIN-13 / EAN 5022660696251
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 190
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00044
Packaging 1 - Weight (kg) 0.19893kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.168m
Packaging 2 - Length (m) 0.168m
Packaging 2 - Qty 950
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0031
Packaging 2 - Weight (kg) 1.09765kg
Packaging 2 - Width (m) 0.11m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 39131504
