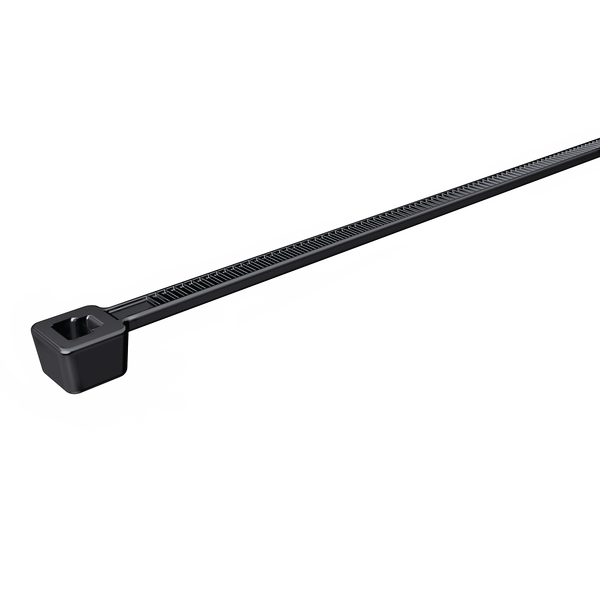

Cable tie inside serrated, 205.0x2.5mm, Ø1.5-50mm, black, 100pcs.
Art.-No. 111-02160 | T18L-PA66W-BK Details

  • UV-resistant black cable tie available in a wide range of sizes
  • Made from 100 % high quality plastic, allows for good recycling
  • Inside serration for a strong hold onto bundles
  • Easy application either manually or with a processing tool
  • Simple to insert due to bent tail
Show more
Package size

Request your individual offer now

e-Learning
Application These inside serrated cable ties are made of UV-resistant Polyamide 6.6 (PA66W) and thus suitable for outdoor applications. UV stabilized cable ties resist UV radiation for a considerably longer period compared to standard PA66 cable ties. They can easily be used for bundling and securing cables, pipes and hoses especially in outdoor areas.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Identification Plate Position none
Local order number T18L/1000PTD/W
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION T18L-PA66W-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family T-Series in PA66W black
Product Group Cable Ties for outdoor use (UV-resistant)
Releasable Closure (Yes/No) No
Short Description Cable Tie 205x2.5 mm UV-black
Tie Closure plastic pawl
Type T18L
Variant Inside Serrated
Bundle Diameter max (metric) 50mm
Bundle ∅ 1.5-50mm
Bundle ∅ min. 1.5mm
Cable Tie Head Length (metric) 4.8mm
Cable Tie Head Width (metric) 4.5mm
Height (H) 3.9mm
Length (L) 205.0mm
Min.Tensile Strength 80N
Strap Width max. (G) (imperial) 0.18"
Thickness (T) 1.2mm
Weight/Unit 0.000679kg
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-334-8585
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications ANSI/UL 62275, csa-C22.2 no. 62275
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E85319
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026104447
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.067901kg
Packaging 1 - Width (m) 0.128m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 20000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 14.3302kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 307.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
