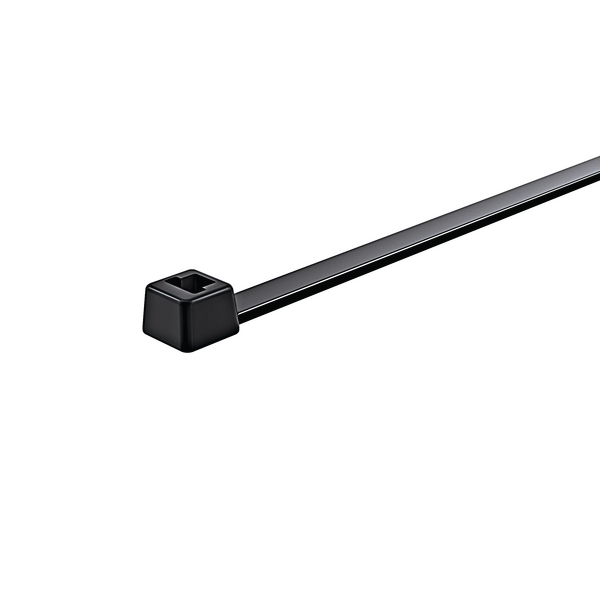

Cable Ties for temperatures up to + 105°C (heat stabilised) T40R

T-Series in PA66HS black, Article number: 111-03970

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA66HS black is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, EVO7
Colour Black (BK)
GLOBAL PART DESCRIPTION T40R-PA66HS-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family T-Series in PA66HS black
Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 40.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Height (Metric) 5.0mm
Length (L) 175mm
Min.Tensile Strength 180N
Thickness (T) 1.15mm
Width (W) 4.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications UL-ZODZ2.E85319
EAN / GTIN 4031026105239
Packaging 1 - Height (m) 0.016m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0004
Packaging 1 - Weight (kg) 0.08kg
Packaging 1 - Width (m) 0.115m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 8.75kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 196.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.08kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
