Cable tie inside serrated for multiple routing, 395.0x4.7mm, Ø1.6-100mm, black, 100pcs.
Art.-No. 117-00008 | T50LDH-PA66HS-BK Details

  • Possibility to separate bundles with only one cable tie

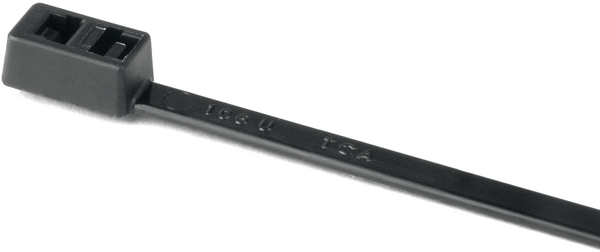

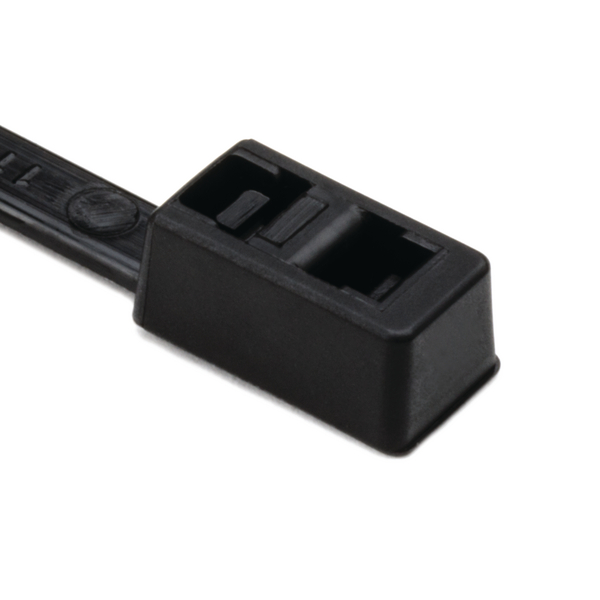

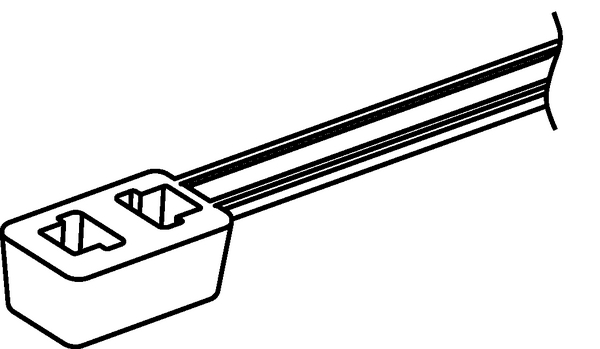

  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials

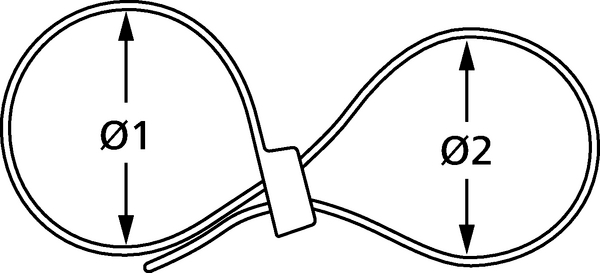

  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Show more
Package size

Request your individual offer now

e-Learning

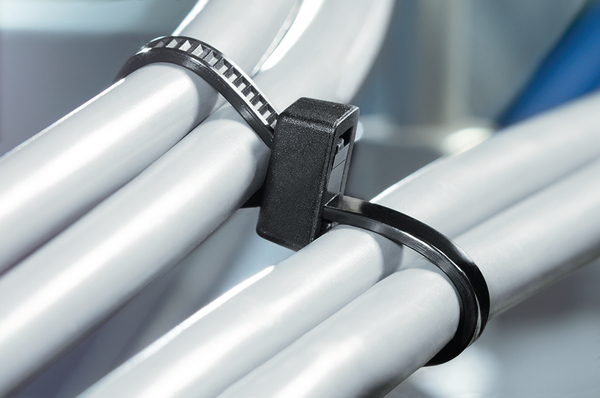

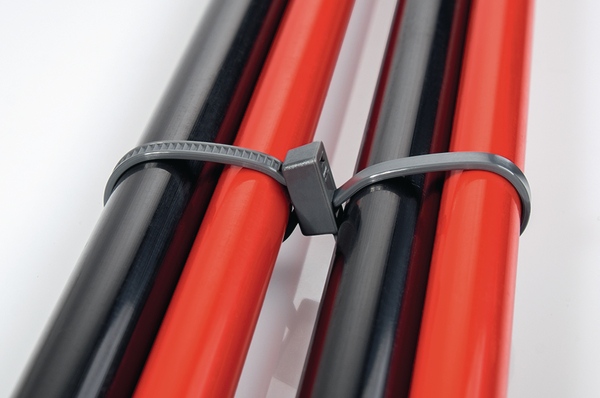

Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Identification Plate Position none
Key product features for multiple routing
Local order number T50LDH.HB3P
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T50LDH-PA66HS-BK
Product Family DH-Series
Product Group Cable ties for parallel routing
Releasable Closure (Yes/No) No
Short Description Two Head Cable Tie 395x4.7 heat stabilised black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 100mm
Bundle ∅ 1.6-100mm
Bundle ∅ min. 1.6mm
Cable Tie Head Height (metric) 6mm
Cable Tie Head Length (metric) 13.5mm
Cable Tie Head Width (metric) 8mm
Length (L) 395.0mm
Min. Tensile Strength 2nd loop 180.0N
Min.Tensile Strength 225N
Strap Width max. (G) (imperial) 0.32"
Thickness (T) 1.4mm
Weight/Unit 0.00291kg
Width (W) 4.7mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised (Yes/No) No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026271163
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.545m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00362
Packaging 1 - Weight (kg) 0.291001kg
Packaging 1 - Width (m) 0.175m
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 15.37005kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Height (m) 1.263m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.212
Packaging 4 - Weight (kg) 205.44kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
