For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

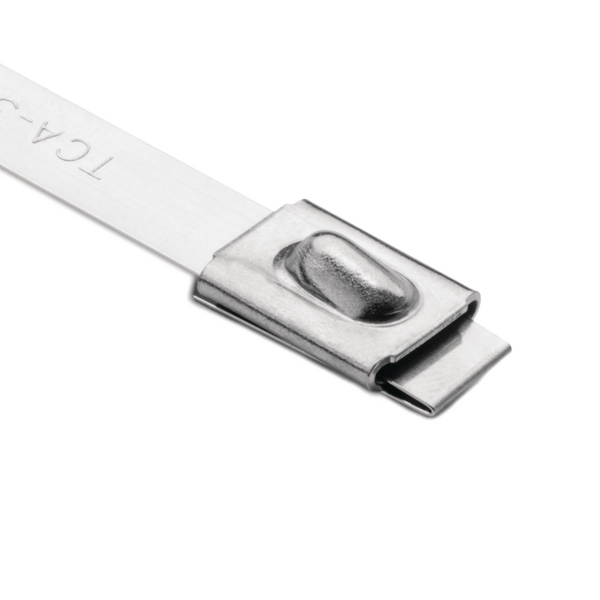

Stainless steel cable tie, ball bearing lock, 838.0x7.9mm, Ø12.0-254.0mm, metal, 50pcs.
Art.-No. 111-94339 | MBT33H-SS316L-ML Details

  • MBT cable ties made from stainless steel 316L
  • Non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Show more

Request your individual offer now

Application Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls.
Application Tool KST-STG200, HDT16, MK9SST, MK9PSST
Colour Metal (ML)
Identification Plate Position none
Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Key product features vibration absorbing
Local order number MBT33H.M2P
Material Stainless Steel (SS316L)
PART DESCRIPTION MBT33H-SS316L-ML
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family MBT-Series, stainless steel 316L
Product Group Cable ties with ball-lock
Releasable Closure (Yes/No) No
Short Description Metal Cable Tie with Ball-Lock 838x7.9 mm
Tie Closure ball bearing lock
Type MBT33H
Variant Not Serrated
Bundle Diameter max (metric) 254.0mm
Bundle ∅ 12.0-254.0mm
Bundle ∅ min. 12.0mm
Length (L) 838.0mm
Min.Tensile Strength 2000N
Thickness (T) 0.3mm
Weight/Unit 0.017kg
Width (W) 7.9mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
Specifications IEC 60092, IEC 62275, IEC 62275:2018
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660020704
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.935m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00314
Packaging 1 - Weight (kg) 0.850001kg
Packaging 1 - Width (m) 0.105m
Packaging 3 - Height (m) 0.14m
Packaging 3 - Length (m) 0.415m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0186
Packaging 3 - Weight (kg) 9.0kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Height (m) 1.124m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 21000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.079
Packaging 4 - Weight (kg) 399.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
