Fixing tie for hole (round), outside serrated, ⌀27.0-44.0mm, black, 100pcs.
Art.-No. 131-31710 | RELF170-PA66-BK |

Copied

    This product is not available anymore.

    Alternative product available

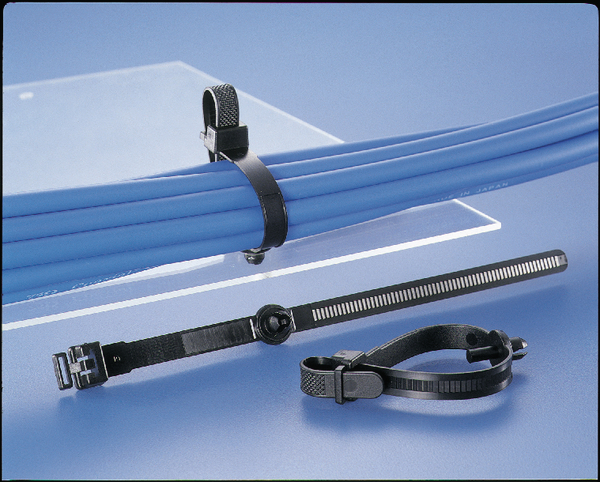

    • Simple to install with wings to lock ties firmly in place
    • Releasable and reusable
    • RELF and RI ranges are conventional 'serrated' cable ties
    • FBR range has a 'ladder-type' design for a very flexible strap
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Offering a very secure fixing, particularly in applications suffering from vibration, these rivet fixing ties are simple and quick to install. Designed originally for the automotive industry they are now widely used in many industries as diverse as agriculture and ship building.
    Colour Black (BK)
    Fixation Method Rivet Fixing
    Identification Plate Position none
    Local order number RELF170.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RELF170-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Group 1-Piece Fixing Ties with rivet, releasable
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type RELF170
    Variant Outside Serrated
    Bundle ⌀ 27.0-44.0mm
    Bundle ⌀ max. 44.0mm
    Bundle ⌀ min. 27.0mm
    Height (H) 18.0mm
    Length (L) 180mm
    Min.Tensile Strength 225N
    Width (W) 8.0mm
    for Hole ⌀ (FH) 6.5 mm
    for Panel Thickness min - max 2.5 - 2.5 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026115405
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.2900kg
    Packaging 3 - Qty 2000
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 124.0kg
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
