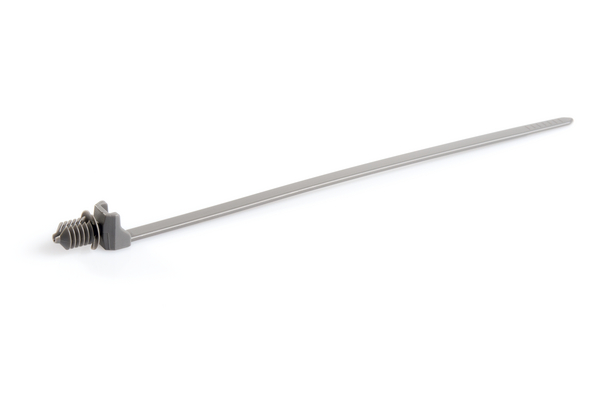

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50SOSFT6D10E

Fir Tree Parts FT6, Article number: 157-00028

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) 1-Piece fixing tie 163x4.6 mm, with fir tree, grey
Fixation Method Fir Tree
GLOBAL PART DESCRIPTION T50SOSFT6D10E-PA46-GY
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT6
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSFT6D10E-PA46-GY-M1
Variant Outside Serrated
Bundle ∅ max. 32.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 9.8mm
for Hole ∅ (FH) 5.8 - 6.2 mm
for Panel Thickness min - max 0.8 - 5.5 mm
Length (L) 163.0mm
Min.Tensile Strength 200N
Thickness (T) 1.3mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +150 °C
Specifications
EAN / GTIN 4031026283470
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 0.7325kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 8000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.54kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 171.576kg
Packaging 4 - Width (m) 0.8m
Weight 0.7kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
