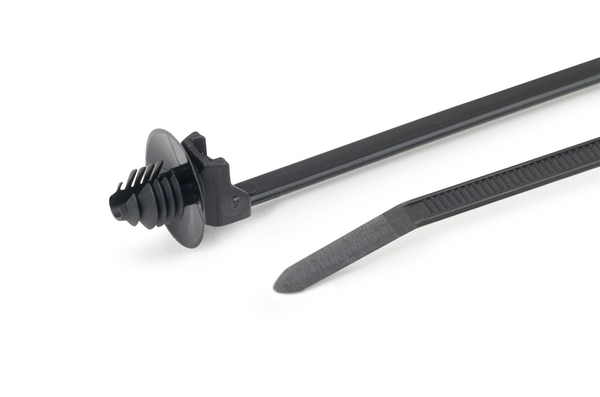

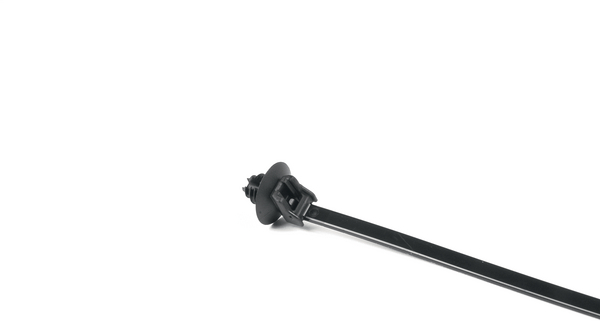

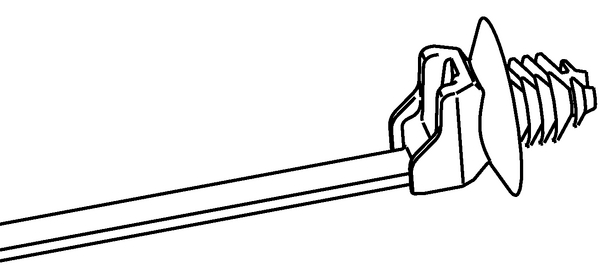

Fixing tie for hole (round), outside serrated, ∅1.6-32.0mm, black, 1500pcs.
Art.-No. 155-05800 | T50SOSFT6E-PA66HIRHS-BK Details

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Anti rotation (Yes / No) NO
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

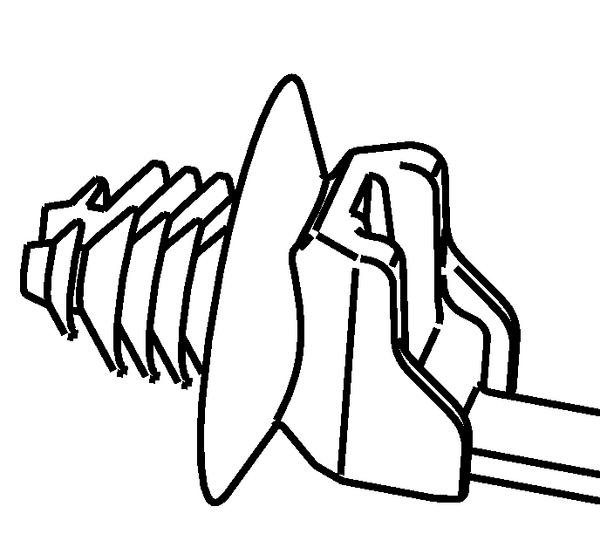

Fixation Method Fir tree for round holes
Identification Plate Position none
Internet Customer Notice Scroll down for alternative automation-ready products.
Key product features products for automatic tools
Local order number T50SOSFT6E.HB6P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SOSFT6E-PA66HIRHS-BK
Pack Cont. 1500pcs.
Package Content packed in Bag
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Tie with Fir Tree and Disc Fixing Tie 160x4.6 black
Tie Closure plastic pawl
Type T50SOSFT6E
Variant Outside Serrated
Bundle Diameter max (metric) 32.0mm
Bundle ∅ 1.6-32.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm

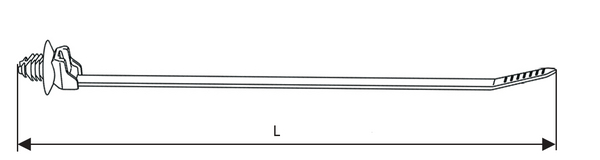

Length (L) 160mm
Length of Fir Tree 8.4mm
Min.Tensile Strength 150N
Panel Thickness max. 0.75 - 3.0mm
Thickness (T) 1.35mm
Weight/Unit 0.00133kg
Width (W) 4.7mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5975-12-386-9364
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026215983
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 2.079216kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 7500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 11.49608kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 112.96kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
