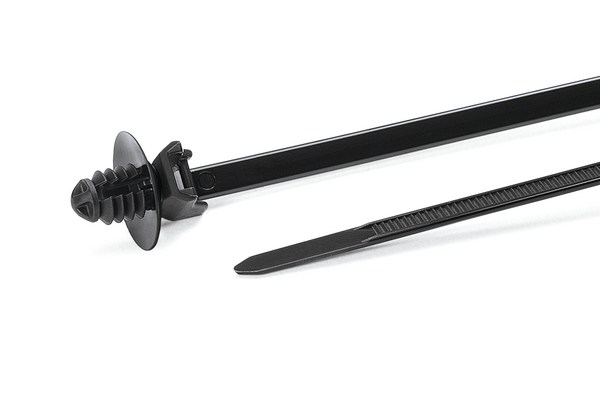

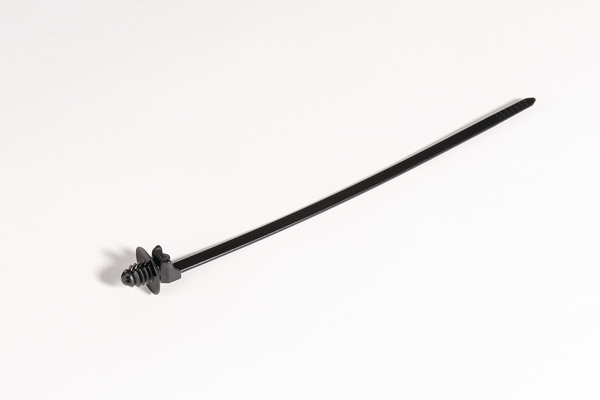

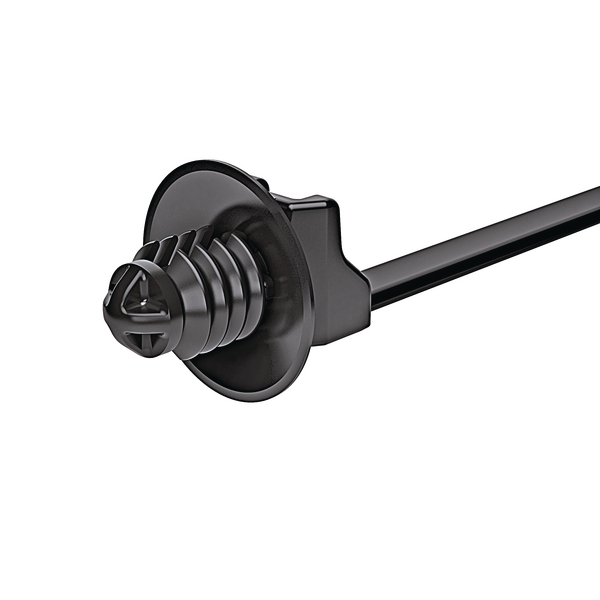

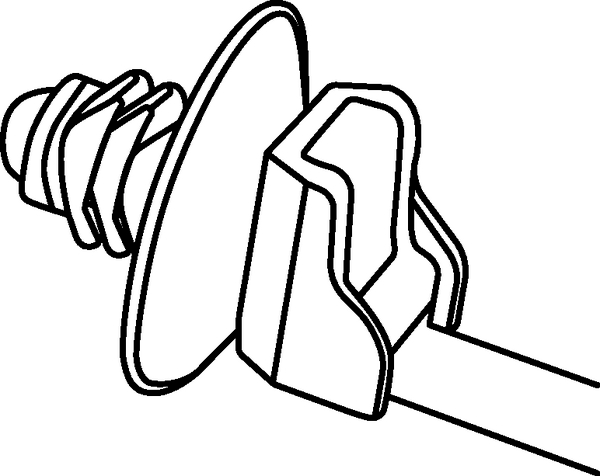

Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, black, 1500pcs.
Art.-No. 157-00085 | T50SOSFT6E2-PA66HS-BK Details

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

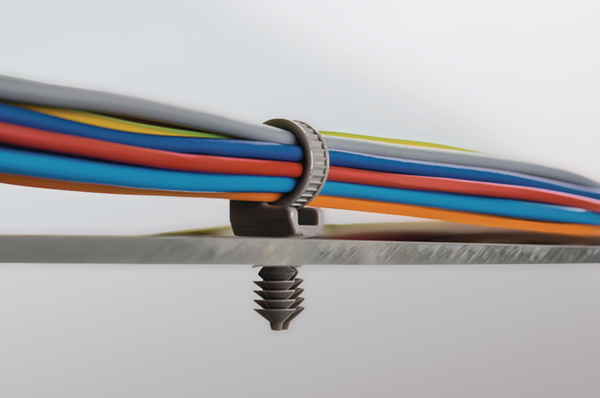

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Local order number T50SOSFT6-E2_PA66HS
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSFT6E2-PA66HS-BK
Pack Cont. 1500pcs.

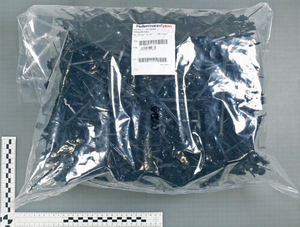

Package Content packed in Bag
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Short Description 1-Piece fixing tie 160x4.6 mm, with fir tree, heat stabilised, black
Tie Closure plastic pawl

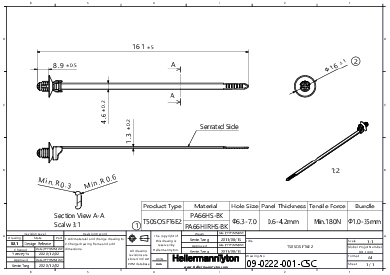

Type T50SOSFT6E2
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm

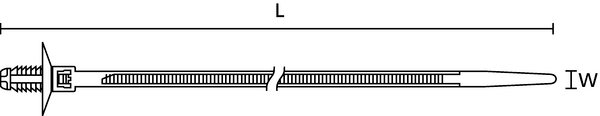

Length (L) 160.0mm
Length (L2) 8.9mm
Min.Tensile Strength 180N
Panel Thickness max. 0.6 - 4.2mm
Weight/Unit 0.00154kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.6 - 4.2 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026402635
Packaging 1 - Height (m) 0.18m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.06435
Packaging 1 - Weight (kg) 2.368576kg
Packaging 1 - Width (m) 0.65m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 10.574304kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 105.608kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
