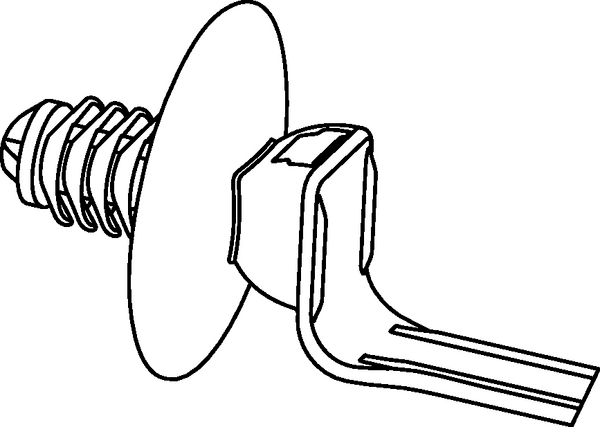

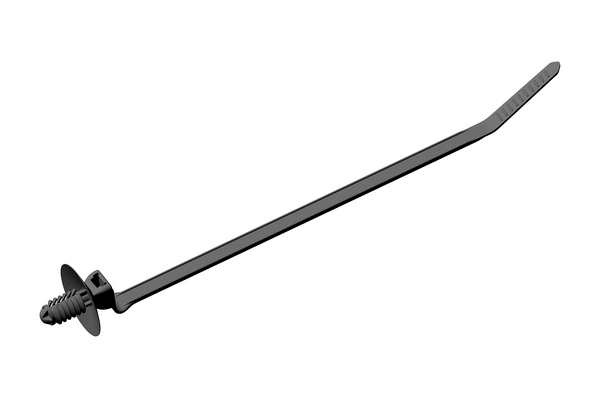

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50SOSFT6LG-E4

Fir Tree Parts FT6, Article number: 157-00237

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

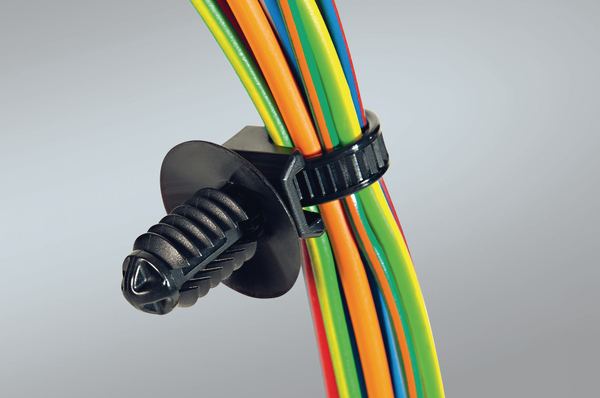

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece fixing tie 165x4.9 mm, with fir tree, heat stabilised, black
Fixation Method Fir Tree

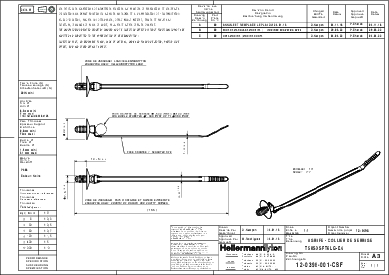

GLOBAL PART DESCRIPTION T50SOSFT6LG-E4-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT6
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type 157-00237
Bundle ∅ max. 31.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 22.0mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.8 - 7 mm
Length (L) 165.0mm
Min.Tensile Strength 200N
Width (W) 4.9mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Min. Extraction Force (N) 250N
Specifications
EAN / GTIN 4031026510194
Packaging 1 - Length (m) 0.46m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.8165kg
Packaging 1 - Width (m) 0.52m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 5.719kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.24m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.19
Packaging 4 - Weight (kg) 89.628kg
Packaging 4 - Width (m) 0.8m
Weight 0.8165kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
