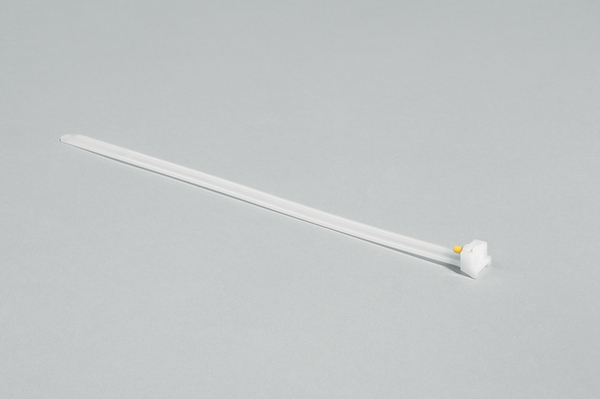

Cable tie not serrated vibration absorbing, 210x8.0mm, ∅8.0-47.0mm, natural, 50pcs.
Art.-No. 121-82155 | KR8/21-PA66HS-NA Details

  • Cable tie without serration to avoid any damage to cables
  • Strap is locked into place with a glass-fibre reinforced pin
  • Very secure and vibration resistant fixing
  • Available in various materials, colours and almost every length
  • Cable ties from PA12 are highly resistant to chemicals, impact and UV light
  • KR-ties up to 426 mm are made as one piece
  • For assembly a special KR-tool is needed
Show more

Request your individual offer now

e-Learning
Application This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.

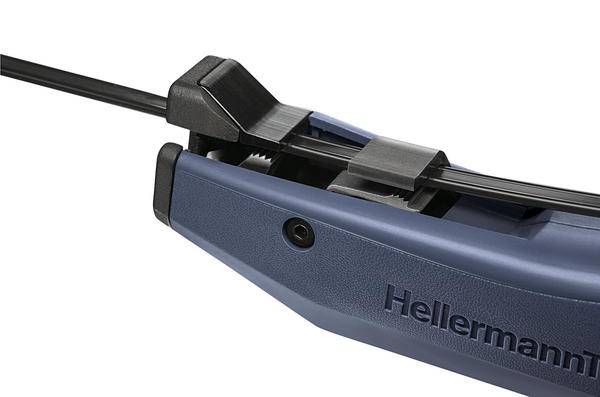

Application Tool KR6/8, KR8PNSE, EVO-KR
Colour Natural (NA)
Fixation Method Cable Tie
Identification Plate Position none
Key product features vibration absorbing
Local order number KR8-21.HN2P
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION KR8/21-PA66HS-NA
Pack Cont. 50pcs.
Package Content packed in pcs.
Product Family KR-Series, 1-Piece
Product Group Cable tie locked by glass fibre pin
Releasable Closure (Yes/No) No
Short Description Cable Tie locked by glass fibre pin 210x8.0 HS-natural
Tie Closure fibreglass pin
Type KR8/21
Variant Not Serrated
Bundle Diameter max (metric) 47.0mm
Bundle ∅ 8.0-47.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (metric) 7.5mm
Cable Tie Head Length (metric) 8mm
Cable Tie Head Width (metric) 11.6mm
Length (L) 210mm
Min.Tensile Strength 785N
Thickness (T) 2.3mm
Weight/Unit 0.002908kg
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5975-12-188-8729
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Vibrations absorbing No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026114156
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00139
Packaging 1 - Weight (kg) 0.152665kg
Packaging 1 - Width (m) 0.14m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.2733kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 177.864kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
