Cable tie not serrated vibration absorbing, 337.0x8.0mm, ∅8.0-86.0mm, grey, 50pcs.
Art.-No. 121-83378 | KR8/33-PA46-GY Details

  • Cable tie without serration to avoid any damage to cables

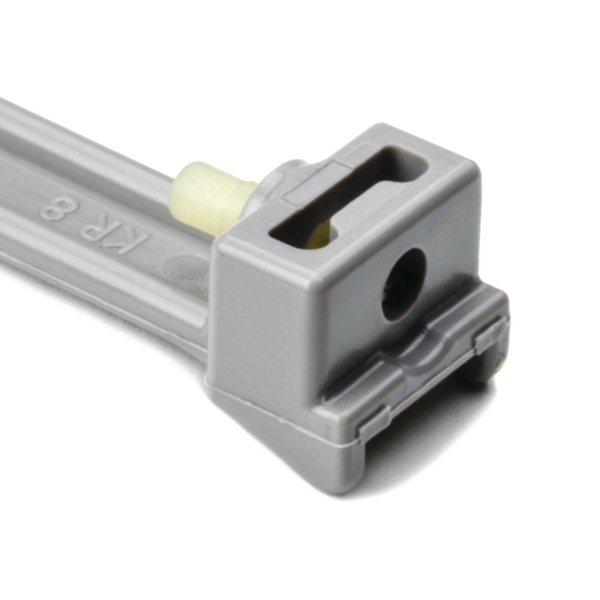

  • Strap is locked into place with a glass-fibre reinforced pin
  • Very secure and vibration resistant fixing
  • Available in various materials, colours and almost every length
  • Cable ties from PA12 are highly resistant to chemicals, impact and UV light
  • KR-ties up to 426 mm are made as one piece
  • For assembly a special KR-tool is needed
  • ncx,xcnflkjsdkldfsaöklwd
Show more

Request your individual offer now

e-Learning

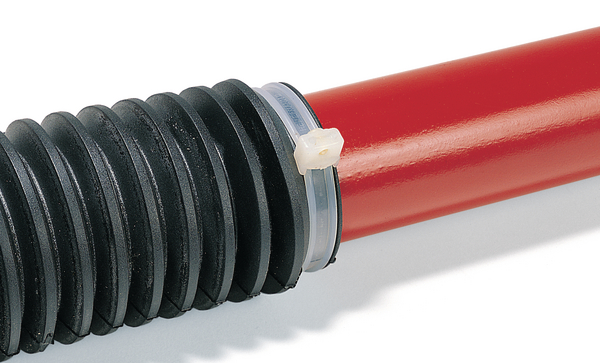

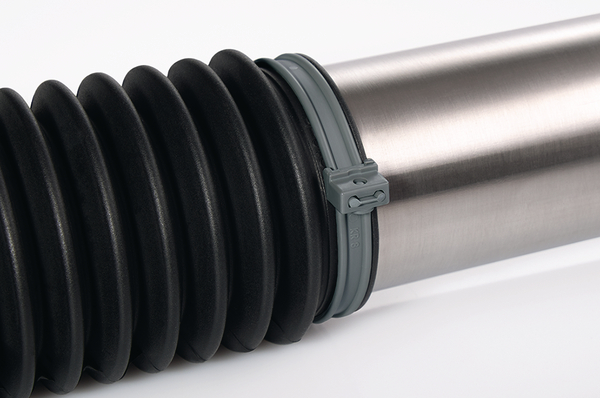

Application This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.
Colour Grey (GY)
Fixation Method Cable Tie
Identification Plate Position none
Key product features vibration absorbing
Material Polyamide 4.6 (PA46)
PART DESCRIPTION KR8/33-PA46-GY
Pack Cont. 50pcs.
Package Content packed in pcs.
Product Family KR-Series, 1-Piece
Product Group Cable Ties locked by glass fibre pin
Releasable Closure (Yes/No) No
Short Description Cable Tie locked by glass fibre pin 337x8 mm PS46 grey
Tie Closure fibreglass pin
Type KR8/33
Variant Not Serrated
Bundle Diameter max (metric) 86.0mm
Bundle ∅ 8.0-86.0mm
Bundle ∅ min. 8.0mm
Length (L) 337.0mm
Min.Tensile Strength 785N
Thickness (T) 2.4mm
Weight/Unit 0.00443kg
Width (W) 8.0mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Vibrations absorbing No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026190921
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01664
Packaging 1 - Weight (kg) 0.2605kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 1500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 8.415kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 223.32kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
