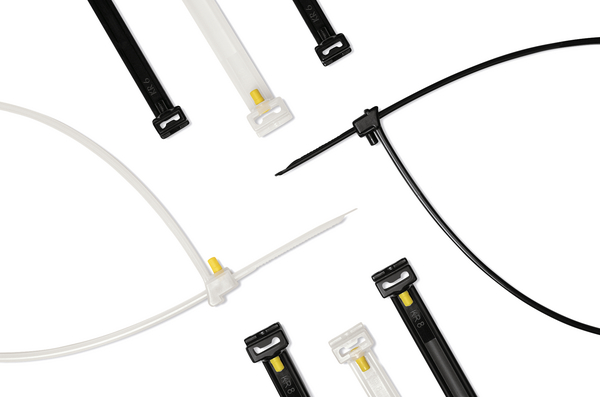

Cable tie not serrated vibration absorbing, 800x8.0mm, ∅248mm, natural, 50pcs.
Art.-No. 121-08019 | KR8/80-PA66-NA Details

  • Cable tie without serration to avoid any damage to cables

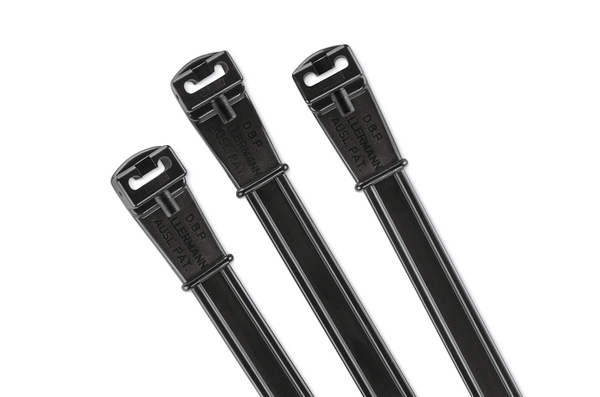

  • Strap is locked into place with a glass-fibre reinforced pin
  • Very secure and vibration resistant fixing
  • Lengths over 500 mm have an ultrasonic welded head

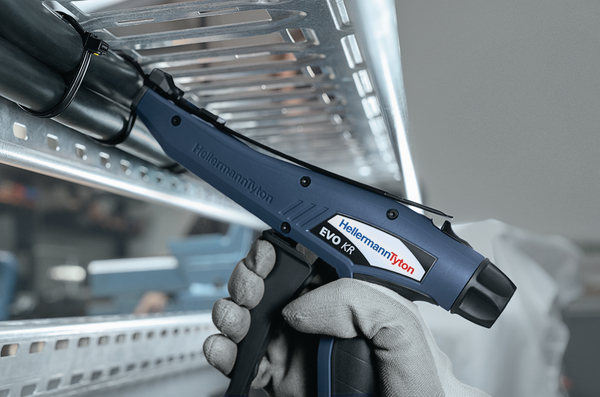

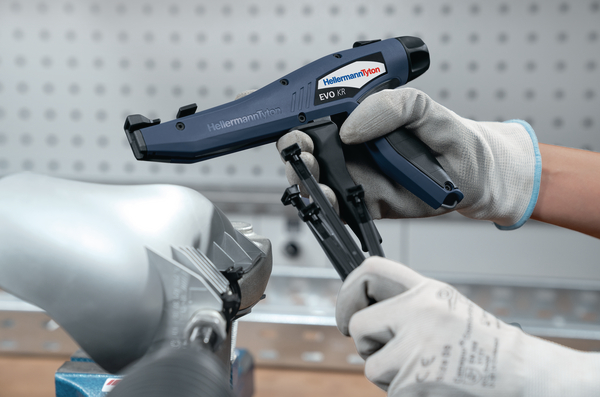

  • For assembly a special KR-tool is needed
  • Available in various materials and colours
Show more

Request your individual offer now

e-Learning

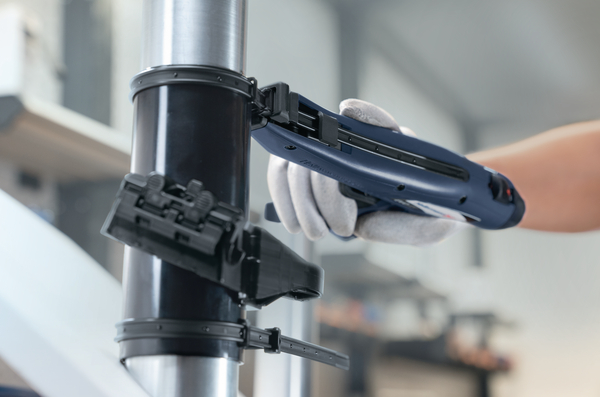

Application This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.
Colour Natural (NA)
Fixation Method Cable Tie
Identification Plate Position none
Key product features vibration absorbing
Material Polyamide 6.6 (PA66)
PART DESCRIPTION KR8/80-PA66-NA
Pack Cont. 50pcs.
Package Content packed in pcs.
Product Family KR-Series, ultrasonic welded
Product Group Cable tie locked by glass fibre pin
Releasable Closure (Yes/No) No
Short Description Cable Tie locked by glass fibre pin 800x8.0 PA66 natural
Tie Closure fibreglass pin
Type KR8/80
Variant Not Serrated
Bundle Diameter max (metric) 248mm
Bundle ∅ 248mm
Length (L) 800mm
Min.Tensile Strength 785N
Thickness (T) 2.05mm
Weight/Unit 0.009278kg
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Operating Temperature Head (Metric) -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Vibrations absorbing No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026113890
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.9m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00488
Packaging 1 - Weight (kg) 0.463901kg
Packaging 1 - Width (m) 0.155m
Packaging 3 - Height (m) 0.132m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.034
Packaging 3 - Weight (kg) 5.27901kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.152
Packaging 4 - Weight (kg) 147.696kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
