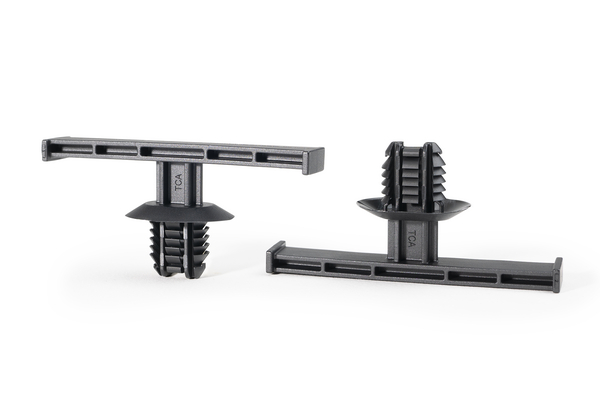

Bundling clip for hole (oval), L=60.0mm, SO=16.0mm, black, 500pcs.
Art.-No. 156-02784
| BC60FTOVAL16SO-PA66HIRHS-BK
|
Copied
- Winding bar for defined cable routing
- Lateral stoppers prevent the the cable ties from slipping down
- Oval FT design for a wide range of hole hole sizes
- Oval foot section serves as anti-twist protection
Request quote
More products in this product group:
| Application | The cable is guided at a defined distance from the surface. The oval design of the foot section prevents twisting and guides the cable in the defined direction. the defined direction. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Local order number | BC60FTOVAL16SO-PA66HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | BC60FTOVAL16SO-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | for oval holes |
| Product Group | Bundling clips with fir tree |
| Type | BC60FTOVAL16SO |
| Weight/Unit | 0.002434kg |
| ⌀ (D2) | 17.3mm |
| Bundling Bar Length | 60.0mm |
| Diameter (D) | 23.3mm |
| Disc ⌀ | 23.3 x 17.3mm |
| Fixing Hole Shape | Oval |
| Height (H) | 28.7mm |
| Height (H2) | 16.0mm |
| Length (L) | 60.0mm |
| Length (L2) | 23.3mm |
| Offset Length | 16.0mm |
| Panel Thickness | 0.6 - 5.0mm |
| Width (W) | 17.3mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.3 x 12.2 mm, 6.3 x 12.3 mm, 6.3 x 12.7 mm, 6.5 x 12.2 mm, 6.6 x 12.5mm |
| for Panel Thickness min - max | 0.6 - 5 mm |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026631097 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.39m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.008619m³ |
| Packaging 1 - Weight (kg) | 1.246135kg |
| Packaging 1 - Width (m) | 0.34m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 5.58454kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 156.016kg |
| Packaging 4 - Width (m) | 0.8m |
