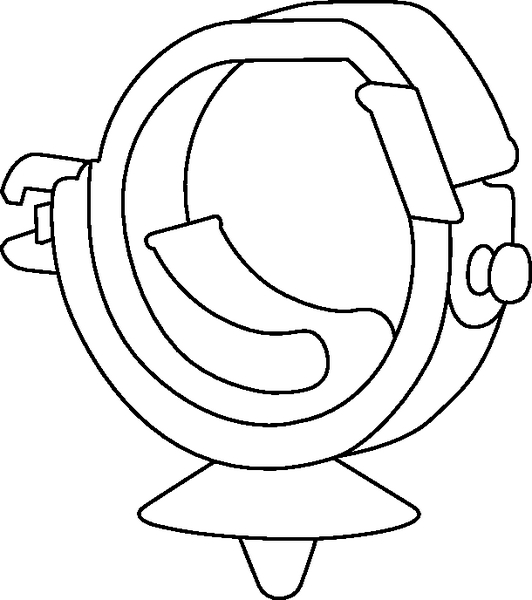

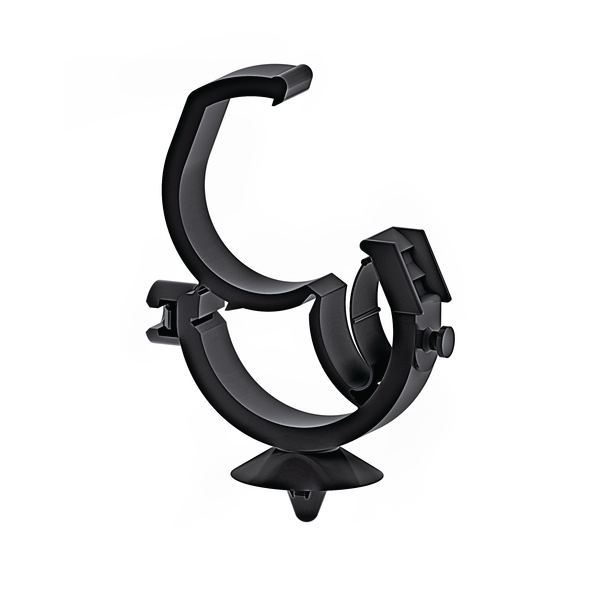

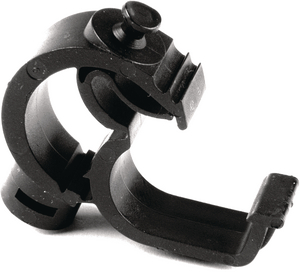

Cable clip for hole (round), T=0.5-2.7mm, ⌀6.2 - 6.7 mm, Dmin=19.0mm, Dmax=28.0mm
Art.-No. 151-00378
| IAHC3AH-PA66HIRHS-BK
|
Copied
- Push and click closure for fixing of wires
- AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
- Vibration resistant, rattlefree and secure hold of bundle
- In case of maintenance easy replacement of bundle possible
- 360 degree rotatable for guiding bundles in different directions
Show more
Show less
Request quote
More products in this product group:
Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, connectable
This product is part of:
| Application | Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | lockable, for faster processing, releasable, vibration absorbing |
| Local order number | 17453 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | IAHC3AH-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | Pack |
| Product Family | IAHC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, connectable |
| Short Description | Fixing Element 40x13.5 mm, push and click, high impact modified, heat stabilised, black |
| Type | IAHC3AH |
| UV-Stabilised | No |
| Weight/Unit | 0.00695kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026335247 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.38m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.019836m³ |
| Packaging 1 - Weight (kg) | 3.541kg |
| Packaging 1 - Width (m) | 0.29m |
| Packaging 3 - Height (m) | 0.2m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.024m³ |
| Packaging 3 - Weight (kg) | 3.961kg |
| Packaging 3 - Width (m) | 0.3m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 179.44kg |
| Packaging 4 - Width (m) | 0.8m |
