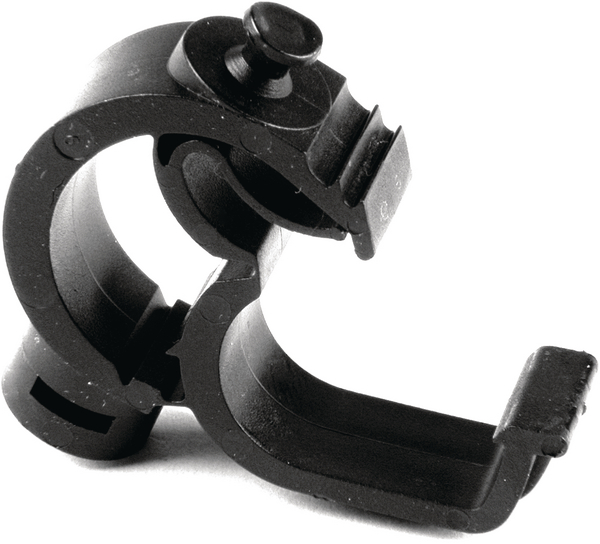

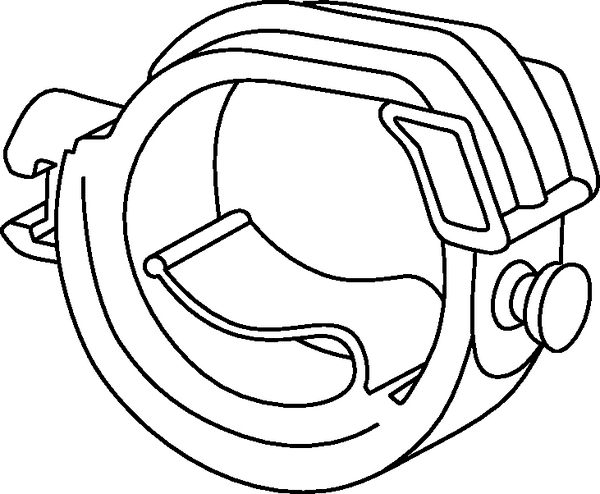

Cable clip with pipe/tube holder, Dmin=35.0mm, Dmax=45.0mm
Art.-No. 151-00195 | IAHC5T-PA66HIRHS-BK Details

  • Push and click closure

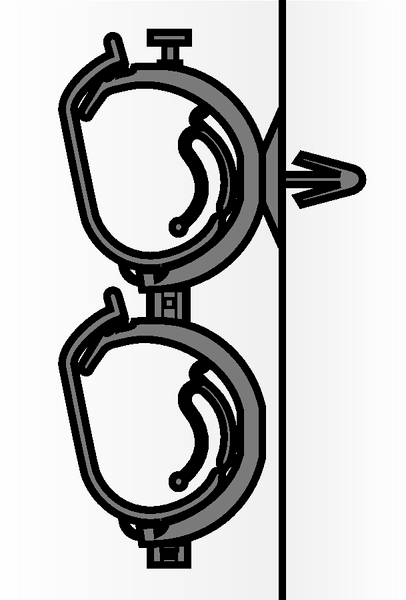

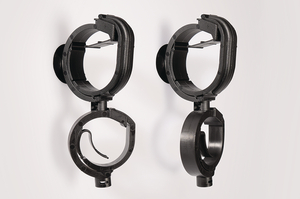

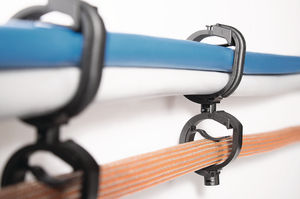

  • Coupling elements of the IAHC variants allow parts to interconnect
  • Clip is clicked into a specific hole
  • IAHC( )T can only be connected with another (I)AHC element

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, for multiple routing, vibration absorbing, releasable, removable, rotatable
Local order number IAHC5T.HIRHSBFP
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION IAHC5T-PA66HIRHS-BK
Pack Cont. 700pcs.
Package Content packed in Carton
Product Family IAHC-Series
Product Group Automatic Harness Clip PA66HIRHS IAHC5T
Short Description Bundling clip 57x13.5 mm, automatic locking, heat stabilised, high impact modified, black
Type IAHC5T
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 35.0-45.0mm
Bundle ∅ min. 35.0mm

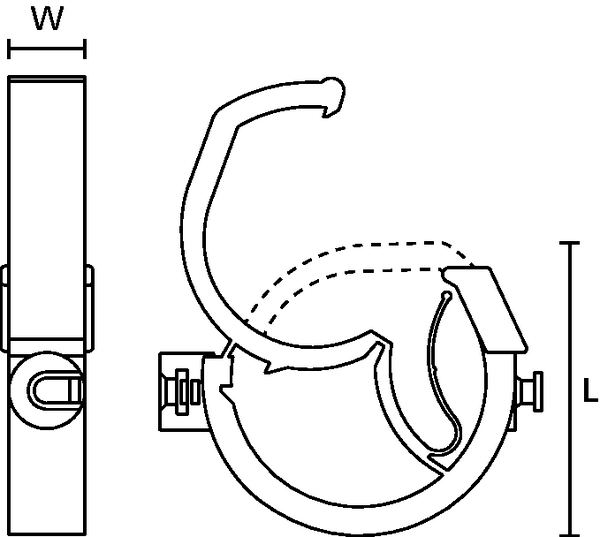

Length (L) 57.0mm
Weight/Unit 0.0126kg

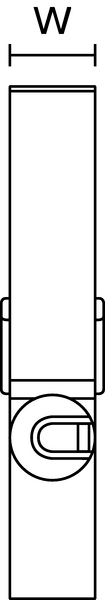

Width (W) 13.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026265223
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 700
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.06
Packaging 1 - Weight (kg) 8.820001kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 700
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 9.570001kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 11200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 174.12kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
