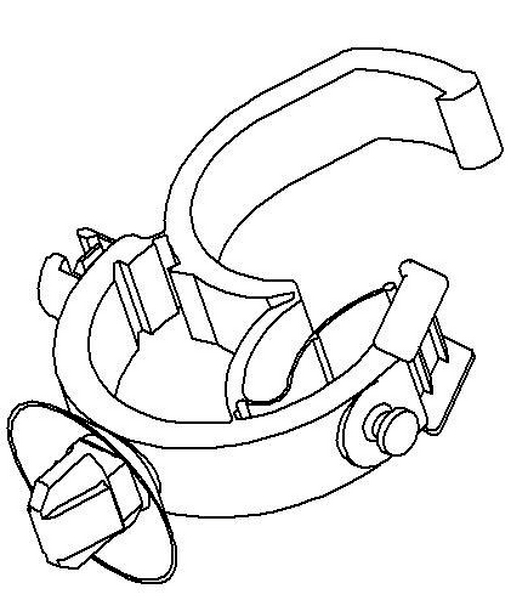

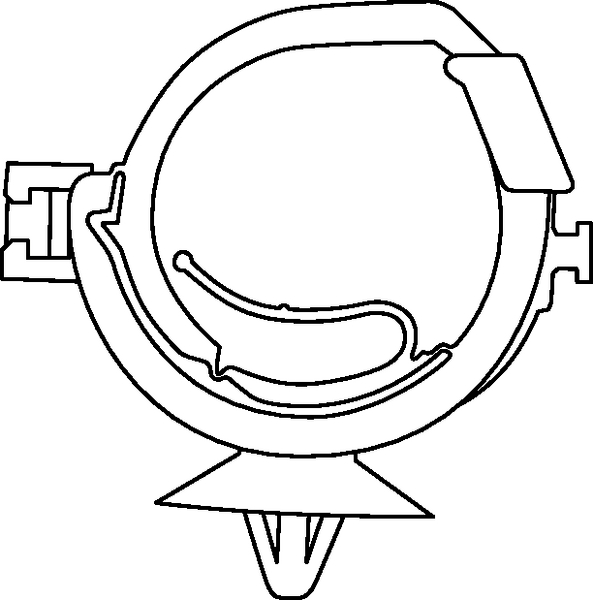

Cable clip for hole (oval), ⌀6.2 x 12.2 mm, Dmin=27.0mm, Dmax=36.0mm

Art.-No. 151-00383

| IAHC4CH-PA6HIRHS-BK

|

Push and click closure for fixing of wires
AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
Vibration resistant, rattlefree and secure hold of bundle
In case of maintenance easy replacement of bundle possible
360 degree rotatable for guiding bundles in different directions

Add to watchlist

Request quote

Distributors near you

Downloads CAD-Download

More products in this product group:

Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable

Base Data

Application	Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour	Black (BK)
Key product features	lockable, for faster processing, releasable, vibration absorbing
Local order number	17455
Material	Polyamide 6, high impact modified, heat stabilised (PA6HIRHS)
PART DESCRIPTION	IAHC4CH-PA6HIRHS-BK
Package Content	450pcs.
Package Content packed in	Box
Product Family	IAHC-Series
Product Group	Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable
Short Description	Fixing Element 53x13.5 mm, push and click, high impact modified, heat stabilised, black
Type	IAHC4CH
Weight/Unit	0.0103kg

Product Dimensions

Attach to ⌀	27.0 - 36.0
Bundle ⌀	27.0-36.0mm
Bundle ⌀ max.	36.0mm
Bundle ⌀ min.	27.0mm
Disc ⌀	24.0mm
Length (L)	55.0mm
Length (L2)	6.5mm
Width (W)	13.5mm
for Hole ⌀ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	0.7 - 2 mm

Specifications

ELV compliant Dir. Art. 4 (2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	FR
Customs Number	39269097
GTIN-13 / EAN	4031026313160
Packaging 3 - Height (m)	0.3m
Packaging 3 - Length (m)	0.4m
Packaging 3 - Qty	450
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.036m³
Packaging 3 - Weight (kg)	5.13kg
Packaging 3 - Width (m)	0.3m
Packaging 4 - Height (m)	1.044m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	10800
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.002m³
Packaging 4 - Weight (kg)	144.12kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
