P-clamp short, Dmin=19.4mm, Dmax=36.0mm, ⌀10.29 mm, 180°, black, 160pcs.
Art.-No. 151-01475
| RCC180SM10-PA66HIRHSUV/ST/ZN-BK
|
Copied

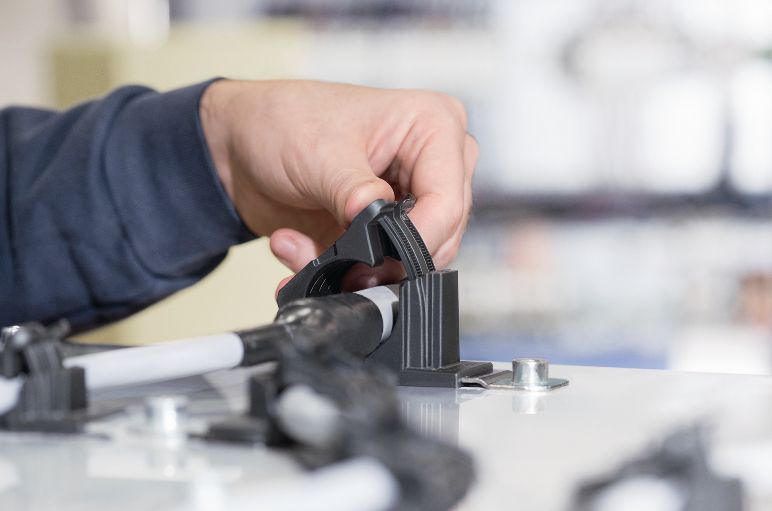

- Ratchet P-Clamp C-Series for bundle diameters from 19.4 mm to 36.0 mm
- One-piece ratchet closure design allows for easy installation during pre- or final assembly
- Multiple configurations handle a wide range of diameters and applications, reducing part inventory
- Clamp interior is designed to guide and center bundle to reduce pinching
- Easy release feature allows for quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
- Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more
Show less
More products in this product group:
| Application | The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting |
| Key product features | removable, releasable, vibration absorbing, for multiple routing |
| Local order number | 151-01475 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN) |
| Min.Tensile Strength | 445N |
| Mounting Screw Type | M10 Screw |
| PART DESCRIPTION | RCC180SM10-PA66HIRHSUV/ST/ZN-BK |
| Package Content | 160pcs. |
| Package Content packed in | Pack |
| Product Family | For bundle diameters from 19.4 mm to 36.0 mm, C-Series |
| Product Group | Ratchet P-Clamp |
| Short Description | Fixing element 156.1x34.9 mm, bundle diameter: 19.4-36 mm, M10, black |
| Type | RCC180SM10 |
| UV-Stabilised | Yes |
| Variant | Short |
| Weight/Unit | 0.04205kg |
| Angle | 180 |
| Bundle ⌀ | 19.4-36.0mm |
| Bundle ⌀ max. | 36.0mm |
| Bundle ⌀ min. | 19.4mm |
| Fixing Hole Centres (F) | 62.3mm |
| Fixing Hole Centres (F) (imperial) | 2.45" |
| Length (L) | 156.1mm |
| Length (L2) | 103.0mm |
| Strap Width max. (G) | 13.2mm |
| Strap Width max. (G) (imperial) | 0.52" |
| Stud ⌀ | M10 |
| Width (W) | 34.9mm |
| Width (W2) | 30.0mm |
| for Hole ⌀ (FH) | 10.29 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
| Stamping Material | Steel (ST) |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UL-File Number | E64139 |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026543079 |
| Packaging 1 - Type | Bag |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 160 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 7.607kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 174.14kg |
| Packaging 4 - Width (m) | 0.8m |
