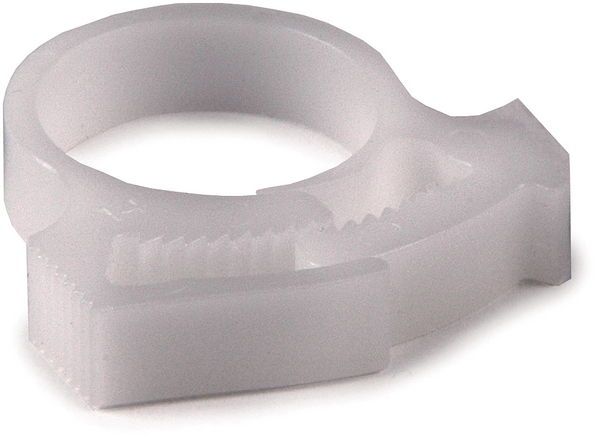

Plastic hose clamp, Ø18.1-19.9mm, natural, 500pcs.
Art.-No. 191-10149 | SNP14(E)-POM-NA Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Natural (NA)
Fixation Method Plug-in mounting
Local order number SNP14.AN6P
Material Polyacetal (POM)
PART DESCRIPTION SNP14(E)-POM-NA
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses natural
Type SNP14(E)
Variant Closed
Bundle Diameter max (metric) 19.9mm
Bundle ∅ 18.1-19.9mm
Bundle ∅ min. 18.1mm
Nominal ∅ 19mm
Wall (WT) 1.8mm
Weight/Unit 0.00026kg
Width (W) max. 24.0mm
Width (W) min. 19.0mm
Width (W2) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660317705
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00144
Packaging 1 - Weight (kg) 0.130001kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 1.92001kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 90000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 55.56kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
