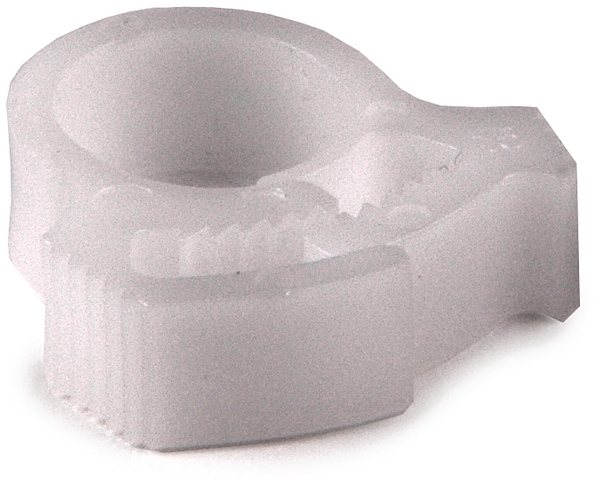

Plastic hose clamp, Ø8.7-10.0mm, natural, 500pcs.
Art.-No. 191-10029 | SNP2(E)-POM-NA Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Natural (NA)
Fixation Method Plug-in mounting
Local order number SNP2.AN6P
Material Polyacetal (POM)
PART DESCRIPTION SNP2(E)-POM-NA
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses natural
Type SNP2(E)
Variant Closed
Bundle Diameter max (metric) 10.0mm
Bundle ∅ 8.7-10.0mm
Bundle ∅ min. 8.7mm
Length (L) 21.0mm
Nominal ∅ 9mm
Wall (WT) 1.5mm
Weight/Unit 0.00014kg
Width (W) max. 21.0mm
Width (W) min. 17.0mm
Width (W2) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 5022660317828
Packaging 1 - Height (m) 0.076m
Packaging 1 - Length (m) 0.159m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00318
Packaging 1 - Weight (kg) 0.070001kg
Packaging 1 - Width (m) 0.263m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 2.02002kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 57.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
