Plastic hose clamp, Ø22.7-24.7mm, natural, 500pcs.
Art.-No. 191-10209 | SNP20(E)-POM-NA Details

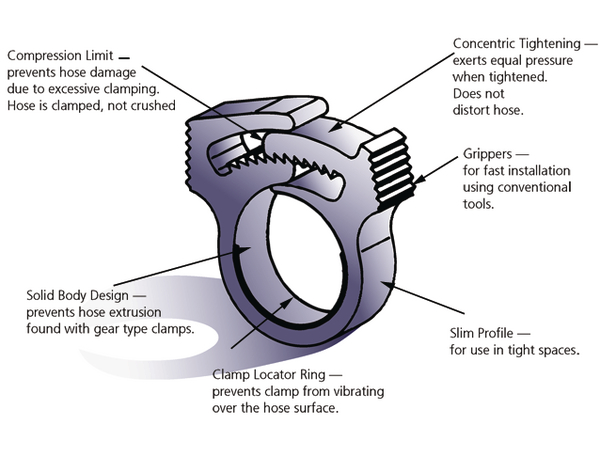

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Natural (NA)
Fixation Method Plug-in mounting
Local order number SNP20.AN6P
Material Polyacetal (POM)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION SNP20(E)-POM-NA
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses natural
Variant Closed
Bundle Diameter max (Metric) 24.7mm
Bundle ∅ 22.7-24.7mm
Bundle ∅ min. 22.7mm
Length (L) 34.0mm
Nominal ∅ 24mm

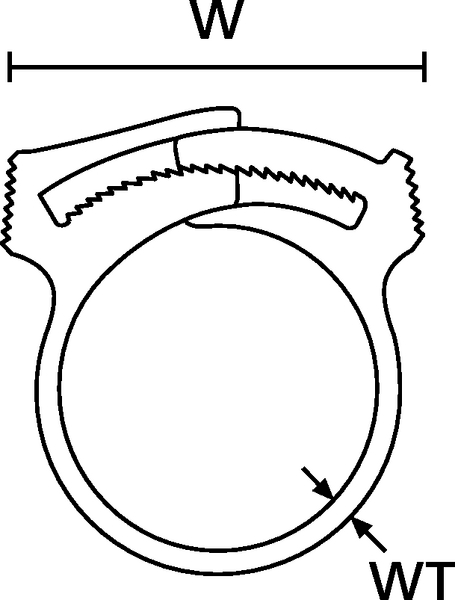

Wall (WT) 1.8mm
Weight/Unit 0.00032kg
Width (W) max. 26.0mm
Width (W) min. 20.0mm
Width (W2) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Specifications
UV-Stabilised (Yes/No) No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 5022660317842
Packaging 1 - Height (m) 0.371m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04311
Packaging 1 - Weight (kg) 1.150001kg
Packaging 1 - Width (m) 0.381m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.850008kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 218.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
