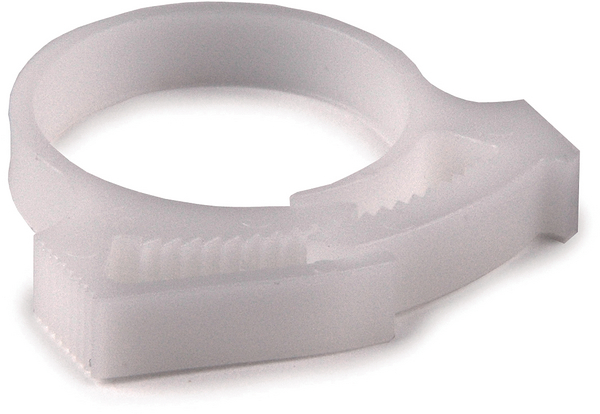

Plastic hose clamp, Ø25.3-27.3mm, natural, 500pcs.
Art.-No. 191-10229 | SNP22(E)-POM-NA Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Natural (NA)
Fixation Method Plug-in mounting
Local order number SNP22.AN6P
Material Polyacetal (POM)
PART DESCRIPTION SNP22(E)-POM-NA
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses natural
Type SNP22(E)
Variant Closed
Bundle Diameter max (metric) 27.3mm
Bundle ∅ 25.3-27.3mm
Bundle ∅ min. 25.3mm
Nominal ∅ 26mm
Wall (WT) 1.6mm
Weight/Unit 0.00034kg
Width (W) max. 26.0mm
Width (W) min. 20.0mm
Width (W2) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660317880
Packaging 1 - Height (m) 0.408m
Packaging 1 - Length (m) 0.398m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.02452
Packaging 1 - Weight (kg) 0.170001kg
Packaging 1 - Width (m) 0.151m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 2.162008kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 64.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
