Fixing Elements with Fir Tree for Corrugated Tubing black
Art.-No. 155-31602 | CTC7.5FT9-PA66HIRHS-BK Details

  • CTC clamps for a variety of nominal diameters
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
Show more

Request your individual offer now

Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour Black (BK)
Conduit ∅ IWS 7,5-8,5
Fixation Method Fir Tree
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION CTC7.5FT9-PA66HIRHS-BK
Product Family CTC-Series
Product Group Fixing elements for corrugated tubing, with fir tree
Short Description Fixing Elements with Fir Tree for Corrugated Tubing black

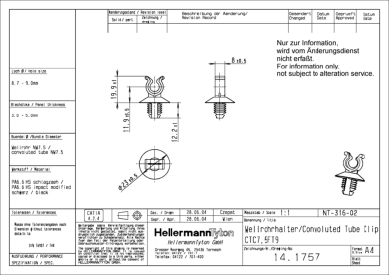

Attach to Ø NW7.5
Disc ∅ 23.0mm
for Hole ∅ (FH) 8.7 - 9.0 mm
for Panel Thickness min - max 3 - 5 mm
Height (H) 19.9mm
Height (H2) 12.2mm
Nominal ∅ 7.5mm
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026218182
Order Unit pcs.
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.265m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00466
Packaging 1 - Weight (kg) 0.684001kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.122008kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 143.44kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
UNSPSC Key 39121702
