FDEC connectorised with 6 SC APC DX adaptors
Art.-No. 857-01080
| FDEC-6VX/WH
|
Copied
- Upto 18, 45mm 3A splices on dedicated splice tray
- 6 SC APC Duplex Adaptors
- 6 cable entry ports
- Separate exit for drop cables
- Hinged fibre storage management tray
- Positive fibre management to ensure 30mm minimum bend radii throughout
- Splitter management area
Request your individual offer now
Request quote
More products in this product group:
| Colour | White (WH) |
| Connector Type | SC-APC |
| Content |
Fibre Distribution Enclosure 6 SC APC Duplex Adaptors Wall Mounting Kit |
| PART DESCRIPTION | FDEC-6VX/WH |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | FDEC - Fibre Distribution Enclosure - Connectorised |
| Short Description | FDEC connectorised with 6 SC APC DX adaptors |
| Technical Description |

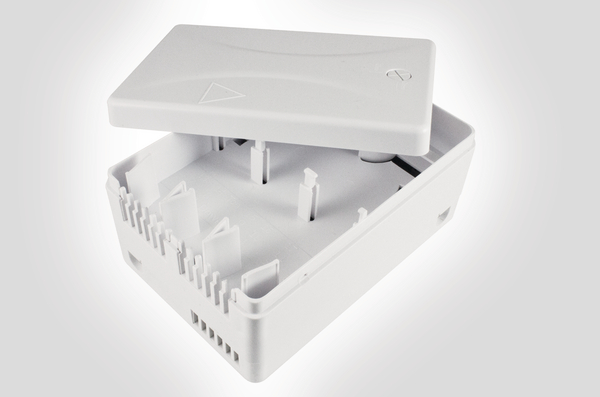

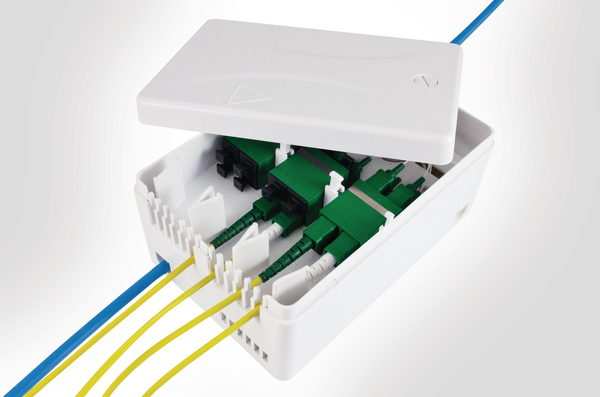

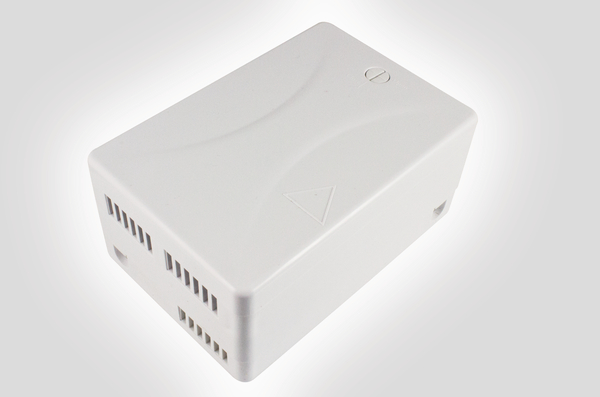

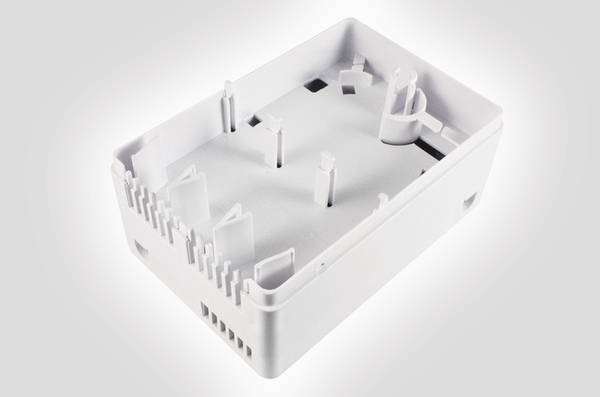

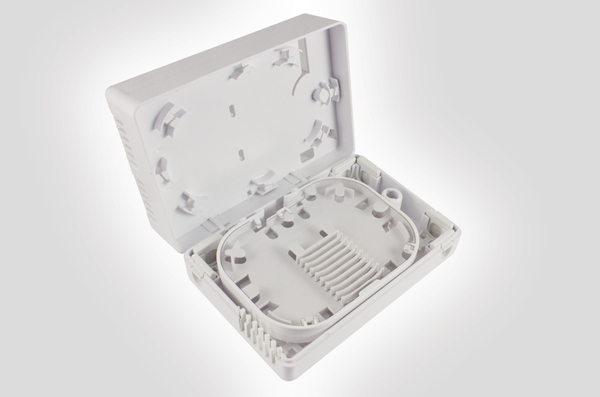

The three layer closure is manufactured from white ABS and has 6 cable entry points positioned around the closure base to allow for vertical and horizontal mounting positions thereby enabling the management of mid-span/in-line and cable (butt) end configurations. The base also provides fibre storage capacity. The hinged splice tray can support up to 18 3A splices (double stacked) and can accommodate passive optical splitters. The upper tray has storage capacity for 900µm pigtail cables and is supplied with 6 SC APC duplex adaptors (the closure has fixing points for a maximum of 9 SC duplex adaptors). The enclosure cover is entirely removable to give clear access to the fibre storage, connector and splice areas and is secured with a twist lock. |
| Type | FDEC-6VX/WH |
