Fibre Wall Outlet : FWOA-XX-XX/WH

Fibre Optic Internal Enclosure, Article number: 857-40368

Features

  • Install directly on the wall or onto a flush-mount back box
  • Cable entry at the base, through the rear of the unit or at the sides
  • Accommodates up to 4 splice protectors (up to 45mm)
  • Quality surface finish
  • Tamper-proof latches
  • Positive fibre management to ensure a 30mm minimum bend radius

Application

The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.

Colour White (WH)
Content Fibre Wall Outlet Wall Mounting Kit
Description Unloaded Fibre Wall Outlet.
PART DESCRIPTION FWOA-XX-XX/WH
Product Family Fibre Optic Internal Enclosure
Product Group Fibre Wall Outlet
Splice Capacity 4

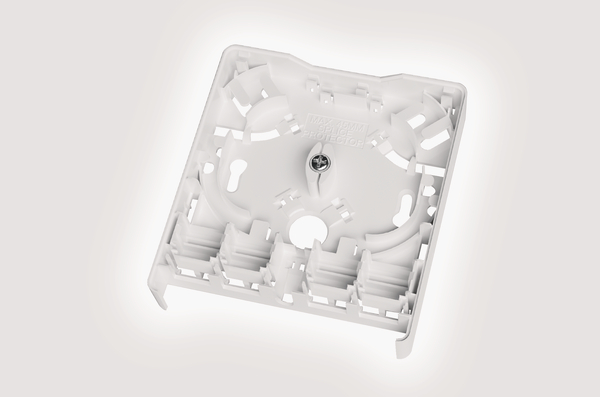

Technical Description The Fibre Wall Outlet (FWO) has been designed to be used as an optical telecommunications outlet with a choice of cable access options. It is a small single socket size enclosure designed for managing up to 4 fibres within the property and can be discretely mounted on the wall close to the building entry point providing the connection point for a router or active equipment. The closure is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The closure has entry points at front, read and on each side and four fibre adaptor mounting points (SC simplex or LC duplex). Fibre management features ensure a minimum bend radius of 30mm is maintained as the bare fibre is routed through the outlet and cable strain relief/anchor points secure the incoming cable. Screw holes allow for easy installation and positioning maintaining the outlet flush to the wall.

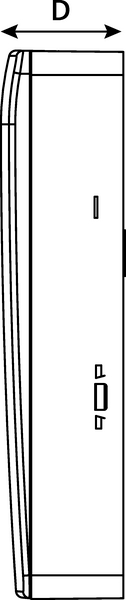

Depth (D) 21mm

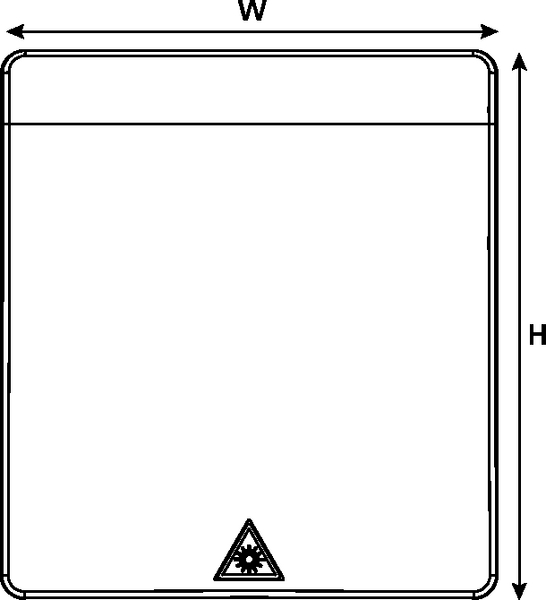

Height (H) 85mm

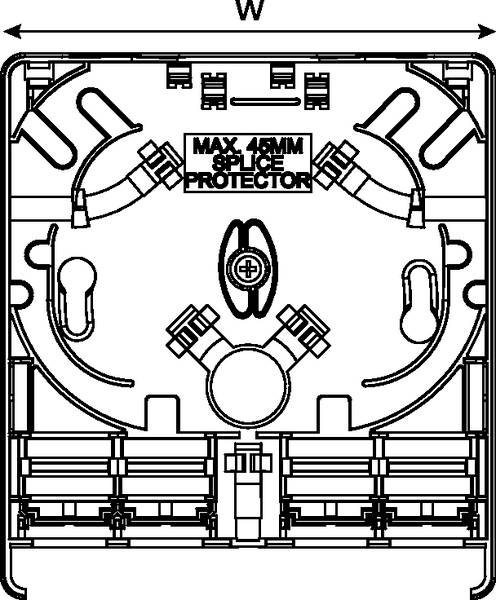

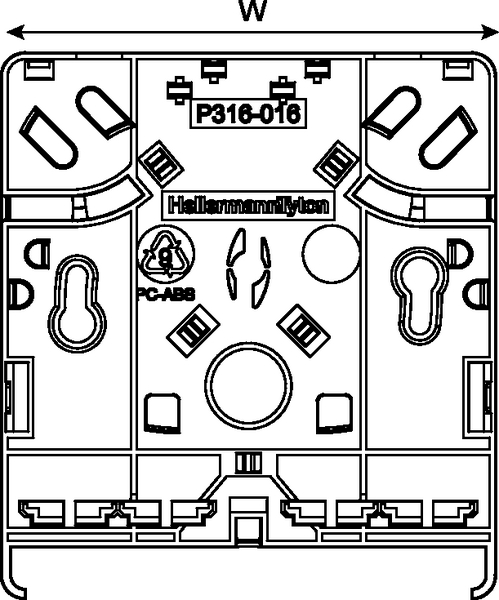

Width (W) 85mm
Material Acrylonitrile Butadiene Styrene (ABS)
EAN / GTIN 5022660145780
