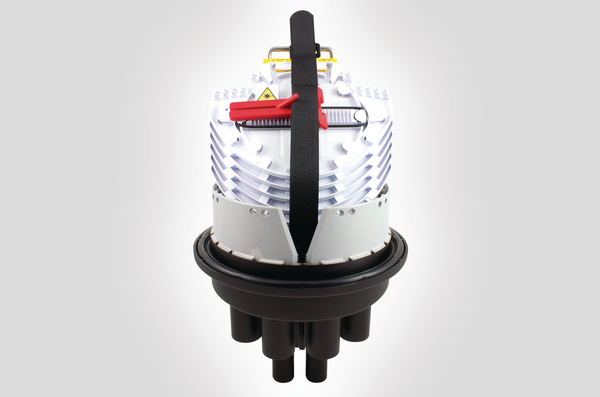

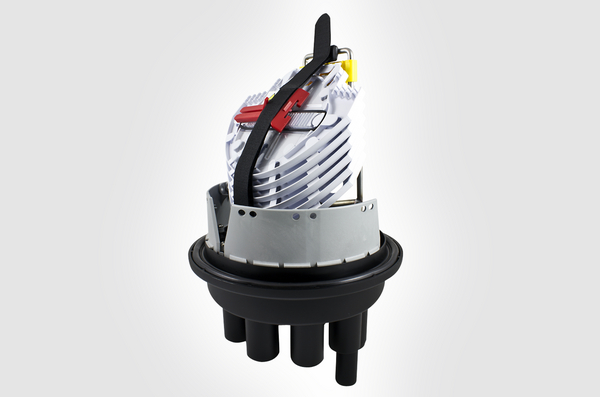

FML Tubed Closure : FMLTB-AXXCXXX

A Length, Article number: 857-00668

Features

  • Maximum 144 fibre splice capacity when using SMF SE-B trays
  • 12 round ports and 1 oval port
  • Pre-tubed to trays to allow for easy insertion of fibre
  • Accommodates Hellipse NZDF SE-B and SMF SE-B trays
  • Maximum 24 splices per tray without double stacking (Hellipse SMF SE-B)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)

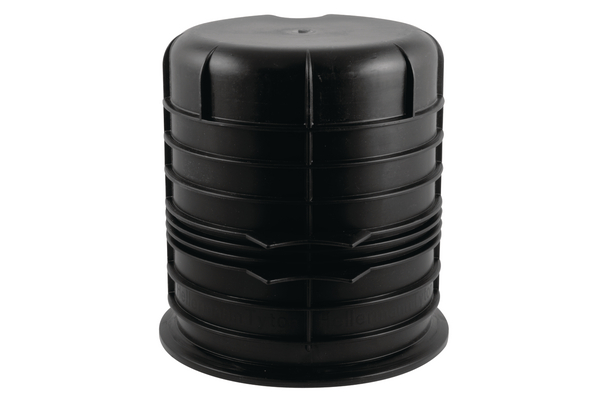

Content FML Base Anchor Plates/Bracket A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tubing to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12
Cover Type A
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FMLTB-AXXCXXX
Port L, T, S, B
Port count 1, 2, 6, 4
Product Family A Length
Product Group FML Tubed Closure

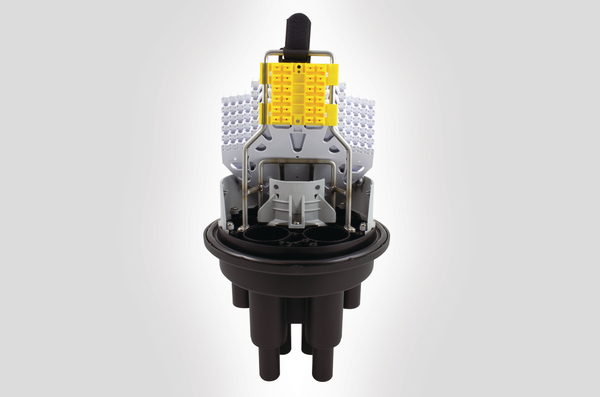

Technical Description The FML A Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 6 Hellipse NZDF SE-B or SMF SE-B trays giving a maximum of 144 fibre splices based on 24 fibres per tray (when using Hellipse SMF SE-B trays). The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Not supplied

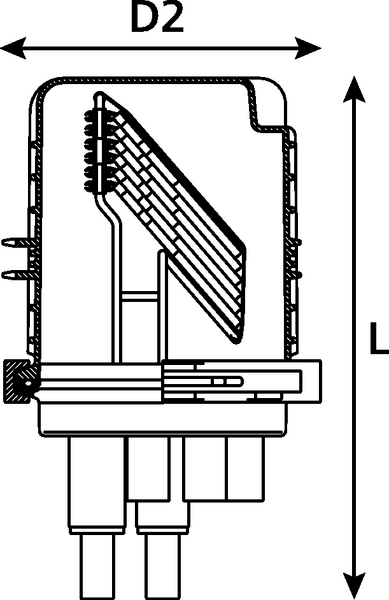

D1 220mm
D2 275mm
Length 400mm
EAN / GTIN 5022660112805
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
