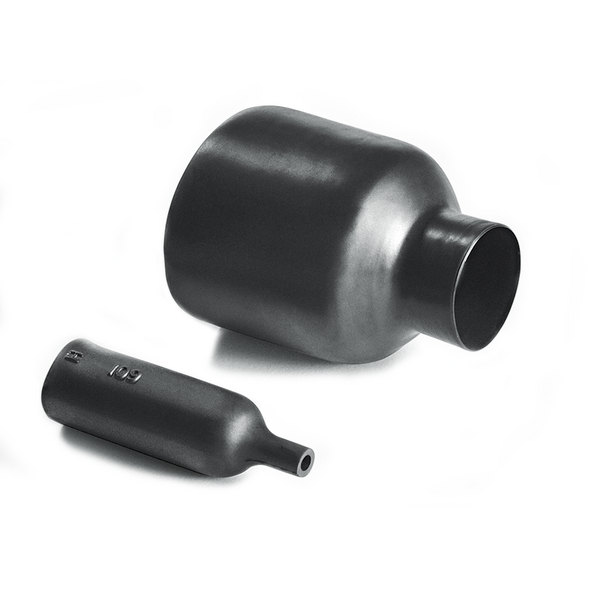

Bottle Shapes
Art.-No. 401-08021 | 108-1-G-PO-X-BK Details

  • Strain relief for connector cable
  • Easy re-entry for repair when combined with hot melt adhesive
  • For mechanical protection and protection against environment impacts

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 108-1-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 108-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 100 Series, without rib
Product Group Bottle Shapes
Type 108-1-G
Variant Thick-Wall
Flexibility Semi rigid
HW ± 20% 1.5mm
JW ± 30% 1mm
P ± 10% 38.1mm
R max 22.9mm
S nom 7.6mm
Weight/Unit 0.002kg
∅H max b 10.4mm
∅H min a 13.7mm
∅J max b 0.1mm
∅J min. a 6.6mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660686368
Packaging 1 - Height (m) 0.030m
Packaging 1 - Length (m) 0.160m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.002kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
