Bottle Shapes
Art.-No. 401-09022 | 109-1-B7W8-PO-X-BK Details

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 109-1-B7W8
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 109-1-B7W8-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 100 Series, without rib
Product Group Bottle Shapes
Type 109-1-B7W8
Variant Thick-Wall
Flexibility Semi rigid
HW ± 20% 2mm
JW ± 30% 1.3mm
P ± 10% 53.3mm
R max 35.6mm
S nom 7.6mm
Weight/Unit 0.005kg

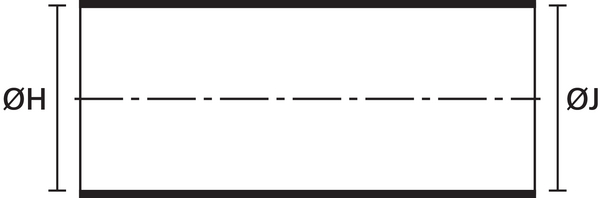

∅H max b 14.2mm
∅H min a 19.3mm
∅J max b 4.1mm
∅J min. a 8.1mm
Adhesive W8
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
Country of Origin GB
GTIN-13 / EAN 5022660406478
Packaging 1 - Height (m) 0.030m
Packaging 1 - Length (m) 0.160m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00048
Packaging 1 - Weight (kg) 0.005kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
