4-Way Outlet Shapes, Breakout Boots 435-1-B7

Helashrink 400 Series, in line, low voltage, Article number: 404-35001

Features

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Made of tough, cross-linked, Polyolefin
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Certifications & Approvals

Application

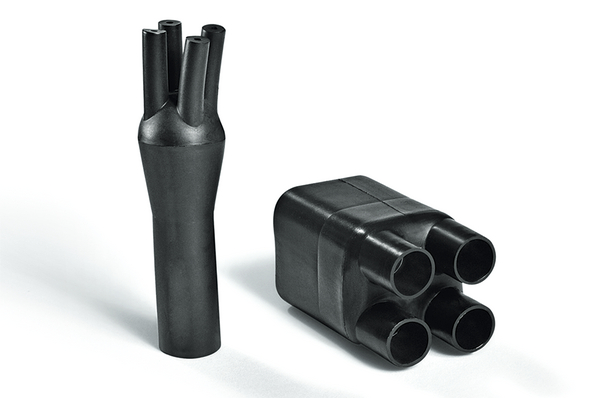

Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection.

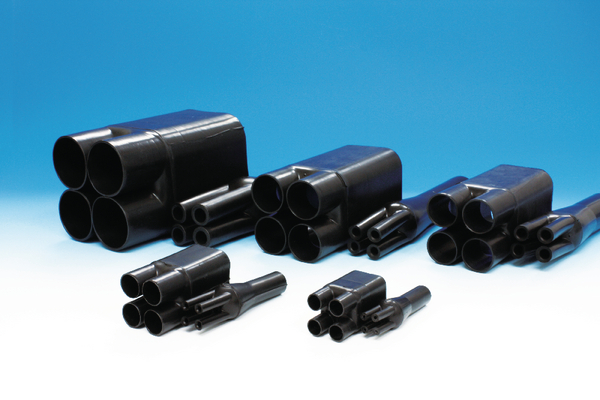

Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.

Application Tool H5002, H5004, E4500
Colour Black (BK)
GLOBAL PART DESCRIPTION 435-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Quantity per Bag
Product Family Helashrink 400 Series, in line, low voltage
Product Group 4-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 435-1-B7
Variant For 4-core cables
Flexibility Semi rigid

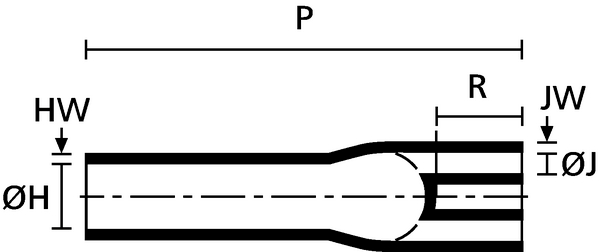

HW ± 20% 2.86mm
JW ± 20% 2.86mm
P ± 10% 93.5mm
R nom 28.5mm
R ± 10% 28.5mm

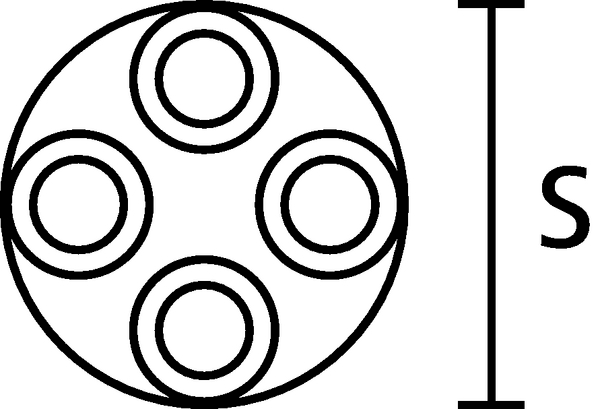

S nom 27mm

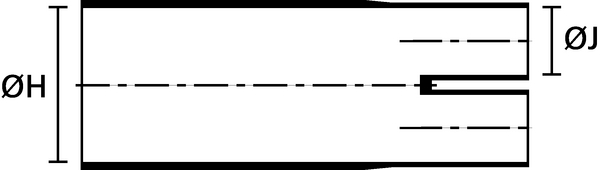

∅H max b 20.32mm
∅H min a 32mm
∅J max b 4.82mm
∅J min. a 13mm
∅K max. b 4.82mm
∅K min. a 13mm
Dielectric Strength 14 kV/mm according to ASTM D2671
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +135 °C
Specifications
Tensile Strength 13MPa
ETIM 5.0 EC002464
ETIM 6.0 EC002464
