4-Way Outlet Shapes, Breakout Boots 436-2-JWM250

Helashrink 400 Series, in line, low voltage, Article number: 404-36008

400 series supplied / fully recovered.


  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Made of tough, cross-linked, Polyolefin
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Certifications & Approvals


Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection.
Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.

Application Tool H5002, H5004, E4500
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per Bag
Product Family Helashrink 400 Series, in line, low voltage
Product Group 4-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 436-2-JWM250
Variant For 4-core cables
Flexibility Flexible

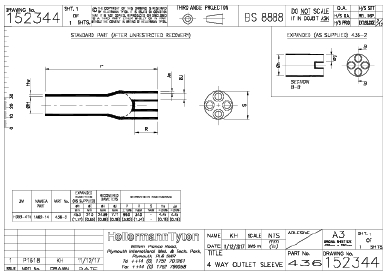

HW ± 20% 4.5mm
JW ± 20% 4.5mm
P ± 10% 99mm
R ± 10% 34mm
S nom 39mm
∅H max b 24.9mm
∅H min a 45mm
∅J max b 7.1mm
∅J min. a 21mm
Adhesive WM250
Dielectric Strength 15 kV/mm
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +135 °C
Tensile Strength 19MPa
ETIM 5.0 EC002464
ETIM 6.0 EC002464
