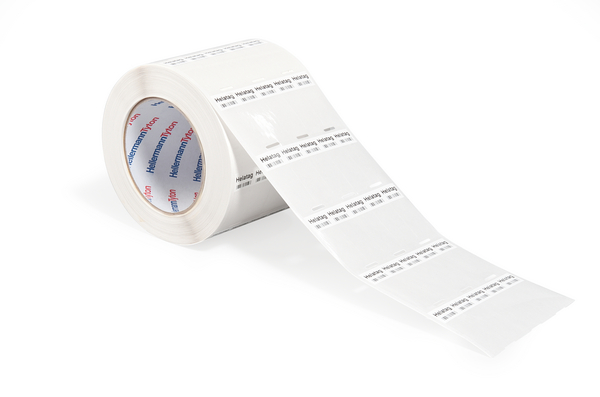

Cable label, self laminating, white/transparent, thermal transfer print, 25.40x50.80mm, H2=187.20mm, 250pcs.
Art.-No. 596-07320
| TAG07TD1-323-CL/WH
|
Details
- High temperature self-laminating labels with an inscription field
- Extremely scratch and chemical resistant
- Protective laminating foil ensures optimal protection against humidity, dirt, debris, and mechanical abrasion
- Survives 5 years external weathering in central European climate
Request your individual offer now
Request quote
More products in this product group:

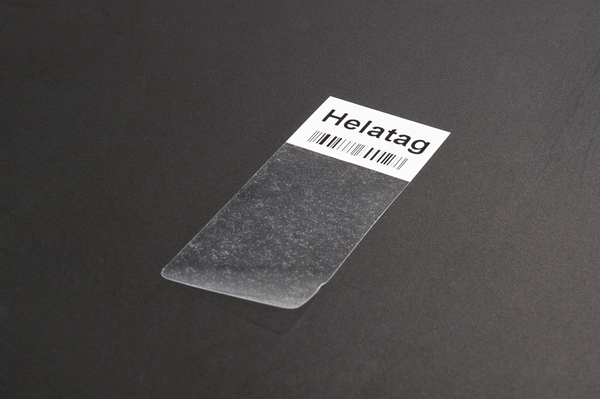

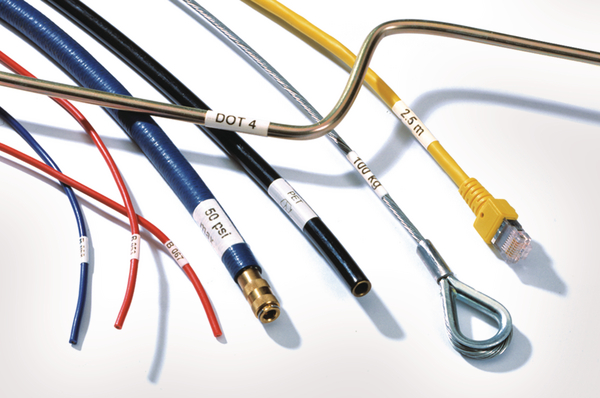

Application | This self-laminating label consists of a printable area with a protective laminate ensure the printed text is shielded from negative environmental influences - such as humidity, dirt, debris and mechanical abrasion. It is ideally suited for wire and cable marking in both high temperature and outside environments, particular used in industry as well as military technology. |
Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
Chem. Material Properties | Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum. |
Colour | White (WH), Transparent (CL) |
Colour Marking Field | White (WH) |
Fixation Method | Pasting / Stick |
Local order number | TAG7TD1-320 |
Material | Type 323, Polyvinylidene Fluoride (323) |
Mech. Material Properties | permanent adhesive, extremely scratch resistant |
PART DESCRIPTION | TAG07TD1-323-CL/WH |
Pack Cont. | 250pcs. |
Package Content packed in | pcs. |
Product Family | Helatag 323 (White-Transparent), high temperature |
Product Group | Self-laminating labels, thermal transfer |
Self adhesive (Yes/No) | Yes |
Short Description | Self-laminating labels, thermal transfer 50.80x25.40x187.20 mm white-transparent |
Type | TAG07TD1 |
Variant | Roller form |
With label space | Yes |
Bundle Diameter max (metric) | 47.50mm |
Bundle ∅ | 20.80-47.50mm |
Bundle ∅ min. | 20.80mm |
Height (H) | 25.40mm |
Height (H2) | 187.20mm |
Print Method | thermal transfer print |
Print Method (Alternative) | laser beam print |
Thickness of Foil | 25 |
Thickness of foil test method | ASTM D3652-83 |
VR | 196.80mm |
Weight/Unit | 0.001873kg |
Width (W) | 50.80mm |
Width of Liner (WL) | 55.00mm |
Adhesive | Acrylic |
Curing Temperature | from +10 °C |
ELV compliant Dir. Art. 4 (2) | YES |
Flammability | UL 94 V0 |
Halogen-free | Yes |
Hazardous Goods | No |
Initial tack | 400g/cm² |
Initial tack | ASTM D2979-71 |
Operating Temperature | -40 °C to +140 °C |
ROHS compliant | Yes |
Recommended Ribbon Type | TT932DOUT |
Shear strength | 100h |
Shear strength test method | ASTM D3654 |
Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
Specifications | |
UL Recognized (US and Canada) | Yes |
|
|
Country of Origin | DE |
Customs Number | 39199080 |
GTIN-13 / EAN | 4031026213729 |
Labels per Row | 1pc. |
Packaging 1 - Height (m) | 0.15m |
Packaging 1 - Length (m) | 0.165m |
Packaging 1 - Qty | 250 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00223m³ |
Packaging 1 - Weight (kg) | 0.468251kg |
Packaging 1 - Width (m) | 0.09m |
Packaging 3 - Height (m) | 0.24m |
Packaging 3 - Length (m) | 0.55m |
Packaging 3 - Qty | 3000 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.0515m³ |
Packaging 3 - Weight (kg) | 6.119kg |
Packaging 3 - Width (m) | 0.39m |
Storage Temperature | +21 °C |
Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
