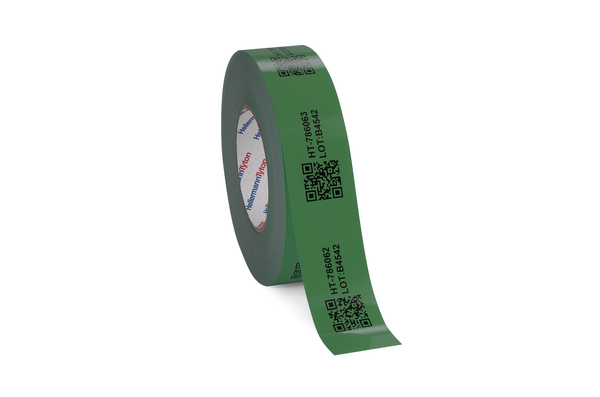

Label, green, thermal transfer print, 40.00mm, 100m
Art.-No. 596-12166 | TAG108TD1-1213-GN Details

  • Pipe, warehouse and shelving label
  • Supplied on a continuous roll and cut by hand or automated with printer cutters
  • Also for rough surfaces
  • Good resistance in outdoor applications

Request your individual offer now

e-Learning
Application These coloured labels are used to identify storage systems with barcode and location information. They are also suitable for general marking of parts and components, samples and blocked goods in quality assurance, storage boxes and barrels.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Application Tool TT431, TT4030
Chem. Material Properties Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour Green (GN)
Local order number TAG108TD1-1213-GN
Material Type 1213, Vinyl, glossy colours (1213)
Mech. Material Properties permanent adhesive, suitable for rough surfaces
PART DESCRIPTION TAG108TD1-1213-GN
Pack Cont. 100m
Package Content packed in Carton
Product Family Material 1213 (Yellow)
Product Group Warehouse labelling, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Warehouse and Pipe Labelling for Thermal Transfer Printing 40 mm green
Type TAG108TD1
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Thickness (T) 66.0µm
Thickness of Foil 95
Thickness of foil test method ISO 534
Weight/Unit 0.0108kg
Width (W) 40.00mm
Width of Liner (WL) 40.00mm
Adhesive Acrylic
Curing Temperature from +8 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 16N/25 mm
Initial tack FINAT FTM 1
Operating Temperature -40 °C to +90 °C
Peel strength 27 N/15 mm
Peel strength test method DIN 53455-5
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT, TTRW, TT822OUT8
Shear strength 1.5
Shear strength test method DIN 53455-5
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026295497
Labels per Row 1pc.
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.147m
Packaging 1 - Qty 50
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00086
Packaging 1 - Weight (kg) 0.54kg
Packaging 1 - Width (m) 0.147m
Packaging 2 - Height (m) 0.12m
Packaging 2 - Length (m) 0.156m
Packaging 2 - Qty 100
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0028
Packaging 2 - Weight (kg) 1.18kg
Packaging 2 - Width (m) 0.15m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 7.68kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 205.32kg
Packaging 4 - Width (m) 0.8m
Reel Length 50.00m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
