Cable label, self laminating, white/transparent, thermal transfer print, 60.00x31.75mm, H2=228.6mm, 400pcs.
Art.-No. 596-01903 | TAG32-230TD1-1232-CL/WH Details

  • High-quality self-laminating labels made of polyester
  • Suitable for marking of wires and cables in harsh environments
  • Flexible but also tear and impact resistant material
  • Excellent resistance to alcohol, gasoline, cleaning agents and hydraulic oils
  • Very temperature and UV-resistant
  • Perforation allows demand-based shortening of the protective laminate for smaller outer diameters

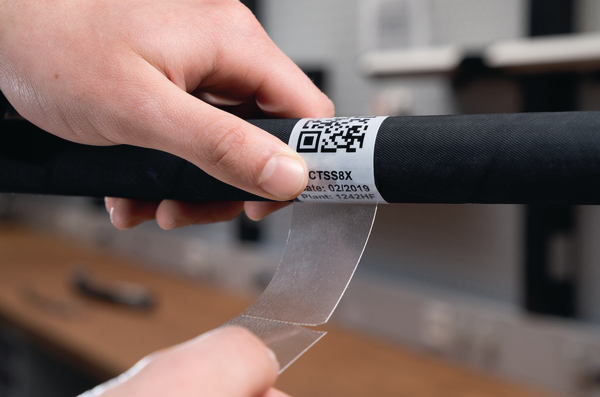

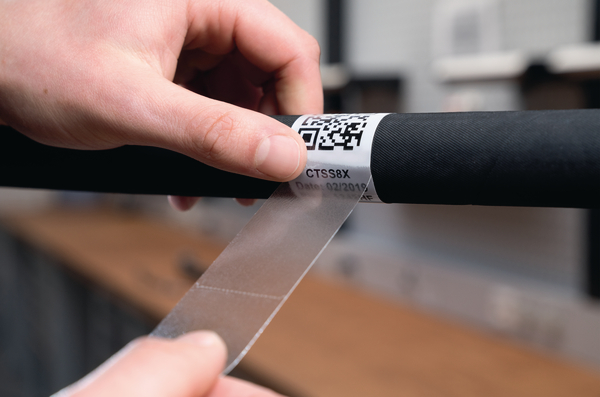

  • Laminating function gives excellent protection against humidity and mechanical abrasion
  • Rounded edge design gives additional bonding strength
Show more

Request your individual offer now

e-Learning

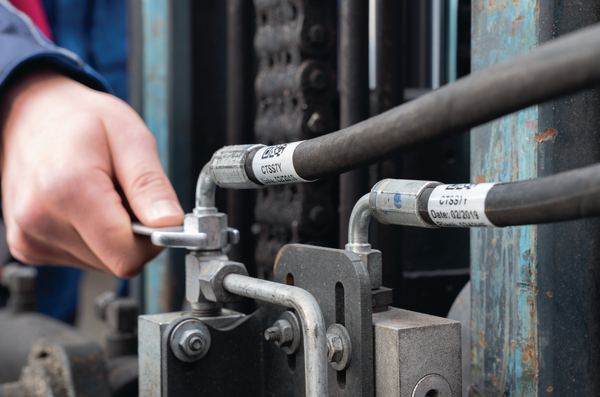

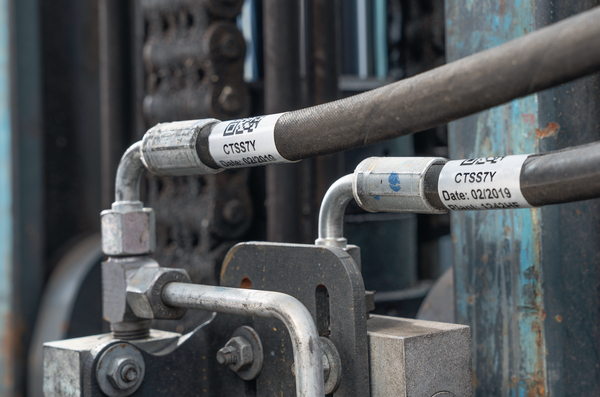

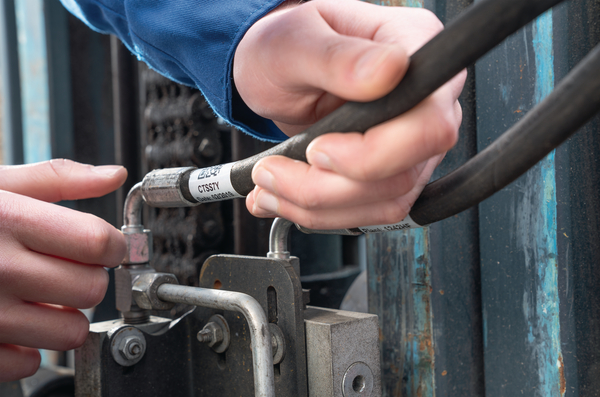

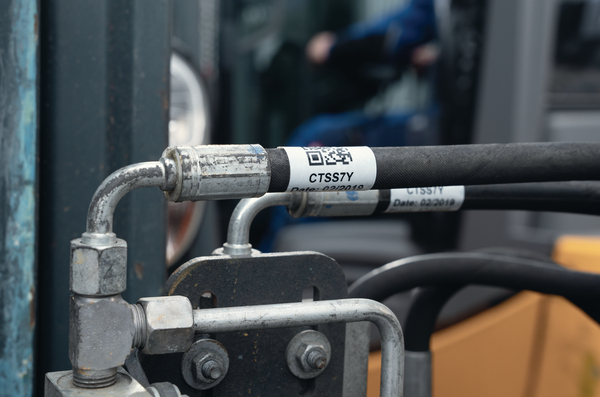

Application These self-laminating labels are ideal for marking hoses and pipes in harsh environments, e.g. as they can be found in the hydraulics industry. Helatag 1232 consists of a white printable area with a protective laminate ensure the printed text is shielded from negative environmental influences - such as humidity, dirt, debris and mechanical abrasion.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Application Tool TT431, TT4030
Cable ∅ max 56.02mm
Cable ∅ min 30.24mm
Chem. Material Properties Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Fixation Method Pasting / Stick
Material Type 1232, Polyester, white transparent, self-laminating (1232)
Mech. Material Properties Due to its flexibility particularly suitable for identification of cables.
Pack Cont. 400pcs.
Package Content packed in roll
PART DESCRIPTION TAG32-230TD1-1232-CL/WH
Product Family Helatag 1232
Product Group Self-laminating labels, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Self-laminating labels, thermal transfer 32X230 mm white-transparent, 1 reel = 400pcs.

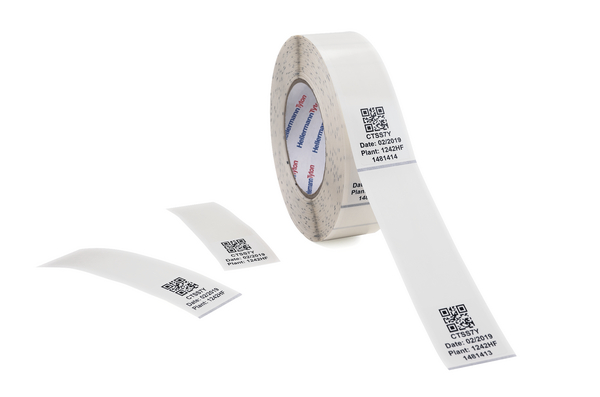

Variant Roller form
With label space Yes
Bundle Diameter max (metric) 50.8mm
Bundle ∅ 30.24-50.8mm
Bundle ∅ min. 30.24mm
H printable 60.00mm
Height (H) 60.00mm
Height (H2) 228.6mm
Print Method thermal transfer print
Thickness of Foil 50µm
Weight/Unit 0.001675kg
Width (W) 31.75mm
Width of Liner (WL) 38.00mm
Width of LIner (WL) (imperial) 1.49"
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature from +2 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
Recommended Ribbon Type TT822OUT
Resistance to Brake cleaner: 720h (at room temperature), Alcohol 94%: 720h (at room temperature), Hydraulic oil: 720h (at room temperature)
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026622637
Labels per Column 1
Labels per Row 1pc.
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 400
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00169
Packaging 1 - Weight (kg) 0.670001kg
Packaging 1 - Width (m) 0.23m
Packaging 3 - Height (m) 0.11m
Packaging 3 - Length (m) 0.144m
Packaging 3 - Qty 400
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0022
Packaging 3 - Weight (kg) 1.17kg
Packaging 3 - Width (m) 0.139m
Packaging 4 - Height (m) 1.244m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 224000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.194
Packaging 4 - Weight (kg) 676.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
