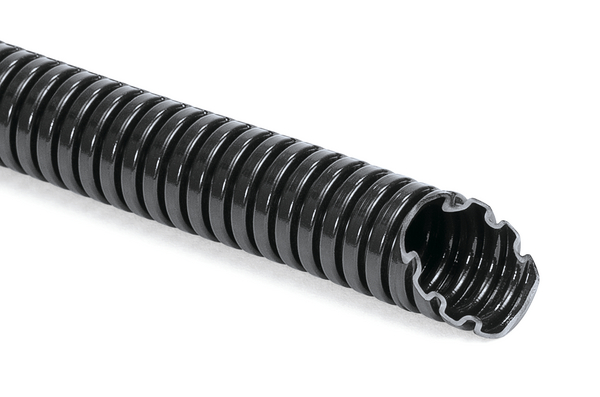

Standard weight corrugated flexible conduit PA6 ND=16mm reel 25m, black
Art.-No. 166-11110 | HG-SW16-PA6-BK Details

  • Very flexible and high fatigue life
  • Very abrasion resistant
  • High impact strength, recovers if crushed
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Self-extinguishing according to UL94 V2
  • Colour: black, grey on request
Show more
Package size

Request your individual offer now

Application Standard weight corrugated flexible conduit for industrial applications, including machine building, plant construction, control panels, public buildings.
Application Tool CONCUTTER1, CONCUTTER2
Colour Black (BK)
Local order number HG-SW16-PA6-BK-25M
Material Polyamide 6 (PA6)
PART DESCRIPTION HG-SW16-PA6-BK
Pack Cont. 25m
Package Content packed in Reel
Pitch Type fine
Product Family HG-SW PA6 Standard Weight
Product Group Non-Metallic Conduits
Short Description Standard weight corrugated flexible conduit PA6 ND=16mm reel 25m, black
Type HG-SW16

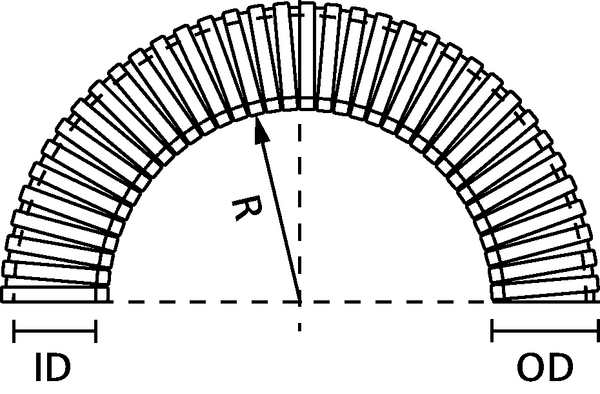

Bending Radius min. (R) 35mm
Diameter (D) 11.8mm
Inside Ø (ID) 11.8mm
Length (L) 25m
Min.Tensile Strength 220N
NW ∅ 12mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Outside Ø (OD) 15.8mm
Weight 38g/m
Weight/Unit 0.0416kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 24244066-110
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Impact Strength 6 J
Oil resistant Yes
Operating Temperature -40 °C to +120 °C
Operating Temperature Moving -20 °C to +100 °C
Oxygen index 26.4%
ROHS compliant Yes
Specifications ANSI/UL 1696, BS EN 61386-23, csa-C22.2 No.227.3, IEC 61386
Specifications
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E325250
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026302331
Packaging 1 - Height (m) 0.14m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0126
Packaging 1 - Weight (kg) 1.04kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 1800
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 79.08kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 100.08kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
