IT Ties

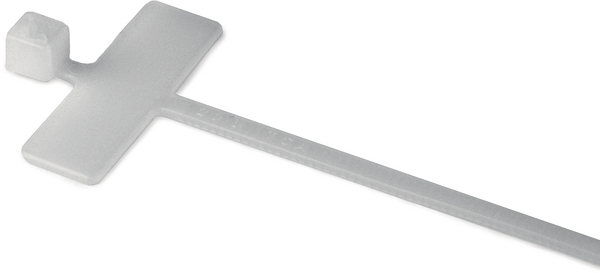

Art.-No. 111-81821 | IT18R-PA66-NA Details

  • Identification ties made of Polyamide 6.6
  • For simple identification and securing of cable bundles in one step
  • Printable labels are available for a professional finish
  • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)

Request your individual offer now

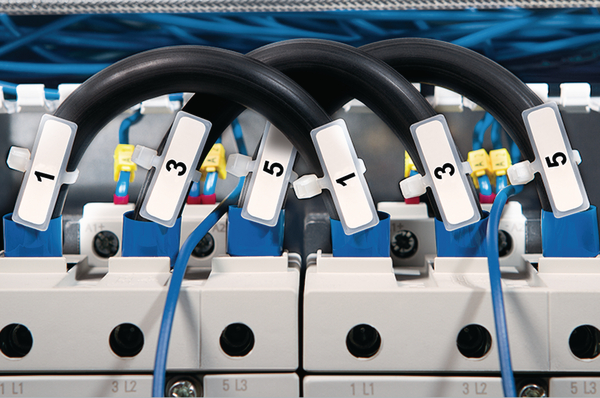

Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, MK3SP, MK7P, MK20, EVO7i
Colour Natural (NA)
Fixation Method None
Identification Plate Position attached to bundle
Local order number IT18R.NN3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION IT18R-PA66-NA
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family IT Ties
Product Group Identification ties and plates for marking cable bundles
Recommended Labels TAG23-06TD1
Releasable Closure (Yes/No) No
Short Description Cable Tie with Marker Plate 100x2.5 natural
Tie Closure plastic pawl
Type IT18R
Variant Inside Serrated
With label space Yes
Bundle Diameter max (metric) 22.00mm
Bundle ∅ 6.00-22.00mm
Bundle ∅ min. 6.00mm

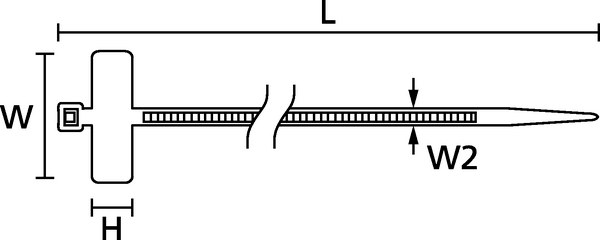

Height (H) 8.00mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Outside ∅ max (OD max.) 16mm
Outside ∅ min. (OD min.) 6mm
Print Method manual marking
Weight/Unit 0.000436kg
Width (W) 25.0mm
Width (W2) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-391-6182
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications csa-C22.2 no. 62275
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660020490
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00092
Packaging 1 - Weight (kg) 0.0506kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 5.862kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 138.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
