15/04/2024

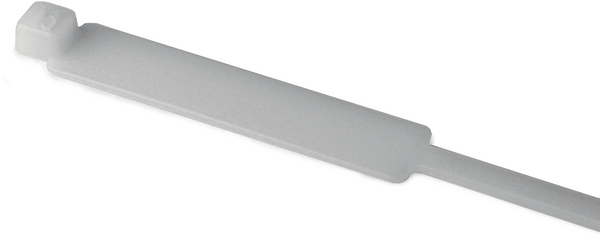

Cable Tie with Marker Plate 390x4.7 mm natural
Art.-No. 111-85319 | IT50L-PA66-NA Details

  • Identification ties made of Polyamide 6.6
  • For simple identification and securing of cable bundles in one step
  • Printable labels are available for a professional finish
  • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)

Request your individual offer now

Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT
Colour Natural (NA)
Fixation Method None
Identification Plate Position attached to bundle
Local order number IT50L.NN3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION IT50L-PA66-NA
Product Family IT Ties
Product Group Identification ties and plates for marking cable bundles
Releasable Closure (Yes/No) No
Short Description Cable Tie with Marker Plate 390x4.7 mm natural
Tie Closure plastic pawl
Variant Inside Serrated
With label space Yes
Bundle Diameter max (metric) 100.0mm
Bundle ∅ 19.0-100.0mm
Bundle ∅ min. 19.0mm

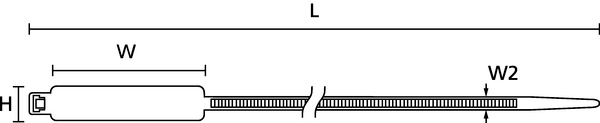

H printable 12.8mm
Height (H) 12.8mm
Length (L) 390.0mm
Min.Tensile Strength 225N
Outside ∅ max. (imperial) 3.94"
Outside ∅ max (OD max.) 100.00mm
Outside ∅ min. (imperial) 0.75"
Outside ∅ min. (OD min.) 19.00mm
Print Method manual marking
Thickness (T) 1.4mm
Weight/Unit 0.00335kg
Width (W) 56.0mm
Width (W2) 4.7mm
Width printable 56.0mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-391-6206
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAGE Code 53421
UL Listed (US and Canada) No
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E64139
US Gov. Designation MS3368-2-9A, Class 1, SAE-AS33681
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026107226
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.58m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00232
Packaging 1 - Weight (kg) 0.335001kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 17.57005kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 231.84kg
Packaging 4 - Width (m) 0.8m
EFO Norway block number 020105
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
Recommended Labels TAG52-10TD1
UNSPSC Key 39121703

Request your individual offer now
