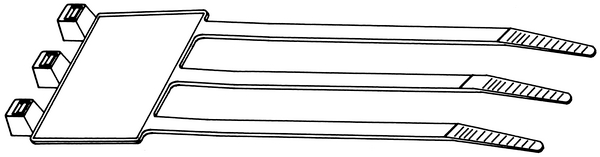

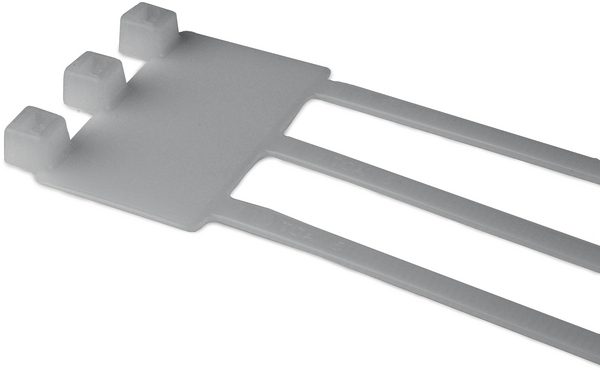

Identification ties and plates for marking cable bundles : IT50RT
Cable Tie with Marker Plate 205x4.7 mm natural, Article number: 111-85119
Features
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Certifications & Approvals
Application
One of the major benefits is the ability to both secure and identify cable bundles at different times.
IT Ties is suitable for following markets and industries
More products in this product group
Identification ties and plates for marking cable bundles >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9, EVO9HT |
| Colour | Natural (NA) |
| Fixation Method | Others |
| Identification Plate Position | attached to bundle |
| Pack Cont. | 50pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | IT50RT-PA66-NA |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAG43-21TD1 |
| Releasable Closure (Yes/No) | No |
| Short Description | 8", 50 lb., identification tie, natural, 50/bag |
| Short Description | Cable Tie with Marker Plate 205x4.7 mm natural |
| Tie Closure | plastic pawl |
| Type | IT50RT.NN2P |
| Variant | Inside Serrated |
| With label space | Yes |
|
|
|
| Bundle ∅ max. | 44.0mm |
| Bundle ∅ min. | 10.0mm |
| H printable | 46.0mm |
| Height (H) | 26.3mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225.0N |
| Outside ∅ max. (imperial) | 1.73" |
| Outside ∅ max (OD max.) | 44.00mm |
| Outside ∅ min. (imperial) | 0.393" |
| Outside ∅ min. (OD min.) | 10.00mm |
| Print Method | Manual |
| Thickness (T) | 1.2mm |
| Width (W) | 46.0mm |
| Width (W2) | 4.7mm |
| Width of printable area (Metric) | 26.30mm |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAGE Code 53421 |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link Link Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| US Gov. Designation | MS3368-4-9D, SAE-AS33681 |
|
|
|
| EAN / GTIN | 4031026107202 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.221m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 0.240001kg |
| Packaging 1 - Width (m) | 0.146m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 5.41002kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.219m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.17m³ |
| Packaging 4 - Weight (kg) | 129.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.24kg |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 Key | EC001530 |
| UNSPSC Key | 39121703 |
