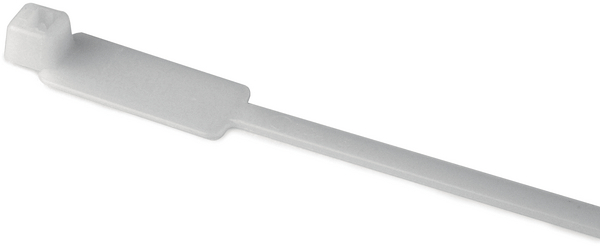

Cable Tie with Marker Plate 203x28 natural
Art.-No. 111-85000 | IT50R-PA66-NA Details

  • Identification ties made of Polyamide 6.6
  • For simple identification and securing of cable bundles in one step
  • Printable labels are available for a professional finish
  • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)

Request your individual offer now

Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT
Colour Natural (NA)
Fixation Method None
Identification Plate Position attached to bundle
Local order number IT50.NN3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION IT50R-PA66-NA
Product Family IT Ties
Product Group Identification ties and plates for marking cable bundles
Releasable Closure (Yes/No) No
Short Description Cable Tie with Marker Plate 203x28 natural
Tie Closure plastic pawl
Variant Inside Serrated
With label space Yes
Bundle Diameter max (metric) 44.50mm
Bundle ∅ 9.50-44.50mm
Bundle ∅ min. 9.50mm
Height (H) 12.90mm
Length (L) 203.0mm
Min.Tensile Strength 225N
Outside ∅ max (OD max.) 44.50mm
Outside ∅ min. (OD min.) 9.50mm
Print Method manual marking
Width (W) 28.00mm
Width (W2) 4.60mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660308529
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 1.5kg
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
Recommended Labels TAG23-10TD1
UNSPSC Key 39121703
